Hubbell 1104LRWUBAR Rework Device Box 2.5 Inch Deep, 1-Gang, Steel, Universal Cable Clamps
- MPN: 1104LRWUBAR
- UPC: 626463020791
- PPN: HBL-1104LRWUBAR
CAD
$13.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

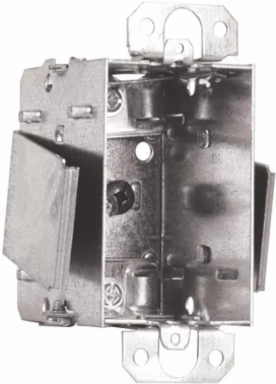

Rework Device Box 2.5 Inch Deep, 1-Gang, Steel, Universal Cable Clamps
Features
- The 1104LRWUBAR is one of the most feature-rich single-gang metallic device boxes in the Hubbell catalog. Measuring 3" x 2" x 2-1/2", it provides 12.5 cubic inches of volume. It is designed to be a "universal" solution for Canadian residential and commercial wiring, capable of mounting almost any standard switch or receptacle.
- The "W" in the part number indicates Wide Side-Mount Brackets. These brackets are larger than standard versions, providing superior stability when nailing the box to a wood stud. They are specifically designed to help the box resist "twisting" or "tilting" during the drywall installation process, ensuring your switches and outlets stay perfectly vertical.
- In Hubbell’s naming convention, "LR" often signifies the box's compliance and specific configuration for the Canadian market. It features pry-out cable entries at the ends, which are designed to keep the box as airtight as possible before the cables are inserted.
- The "BAR" suffix confirms this model includes: Plaster Ears: These allow the box to be "old-worked" into existing walls or adjusted for depth if the drywall isn't perfectly flush. Pre-installed Ground Screw: A critical safety component that allows for easy bonding to the electrical system, fulfilling Canadian Electrical Code (CEC) requirements.
Documentation & Downloads
Specifications
Additional
- Type
- Switch Box
- Gang Size
- 1-Gang
- Bracket Setback
- 0.4375 in
- Mounting
- Welded
- Ends Cable Entry
- 4
- Plaster Ears
- Yes
- Raised Ground
- Yes
- Compliance
- CSA Certified
Depth2 in
MaterialSteel
Bracket TypeRework Bracket
Cable ClampsUniversal
GangableYes
Wiring SystemNMD (Non-Metallic Sheathed), AC (Armoured Cable) 14/2, 8/3
Weight0.56 lb
