Single Gang Device Box, Gangable, 1-1/2 in. Deep, 8 Cu. In., with Raised Ground Screw, Flush Ears, Cable Pryouts Ends, NMD90 and AC90 (50-Pack)
Hubbell

Hubbell 1100LUBAR Single Gang Device Box, Gangable, 1-1/2 in. Deep, 8 Cu. In., with Raised Ground Screw, Flush Ears, Cable Pryouts Ends, NMD90 and AC90 (50-Pack)

  • MPN: 1100LUBAR
  • UPC: 626463020685
  • PPN: HBL-1100LUBAR

CAD

$5.08

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Single Gang Device Box, Gangable, 1-1/2 in. Deep, 8 Cu. In., with Raised Ground Screw, Flush Ears, Cable Pryouts Ends, NMD90 and AC90 (50-Pack)

Features

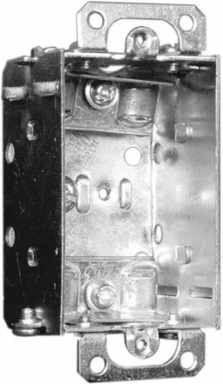

  • The Hubbell 1100LUBAR is a specialized metallic device box designed for shallow-wall applications. Measuring 3" x 2" x 1-1/2", it provides 8.0 cubic inches of wiring volume. It is the go-to choice for Canadian contractors dealing with thin partitions or retrofitting devices into walls where depth is restricted.
  • One of its most useful features is that it is gangable. By removing the side plates, you can join multiple 1100LUBAR boxes together to create a two-gang, three-gang, or larger enclosure. This allows for a uniform appearance even when you need to install multiple switches or receptacles side-by-side in a shallow wall.
  • The "BAR" suffix indicates the presence of plaster ears (flush ears) and a ground screw. These ears allow the box to be used in "rework" or "old work" applications where the box is mounted directly to the drywall or plaster surface rather than being nailed to a stud, ensuring the box sits perfectly flush with the wall surface.
  • The box is equipped with Universal Cable Clamps (U-Clamps) and cable pry-outs at the ends. These are specifically designed to secure non-metallic sheathed cable (NMD90/Loomex) or armored cable (AC90/BX), providing the mechanical strain relief required by the Canadian Electrical Code (CEC).

Documentation & Downloads

Specifications

Additional

Volume
8 Cu. In.
Weight
0.356 lb
Raised Ground Screw
Yes
Plaster Ears
Yes
Cable Entry
Universal Cable Clamps
Certification
CSA Certified
Depth1.5 in.
MaterialSteel
GangableYes
Number of Gangs1-Gang
Wiring SystemNMD90, AC90
