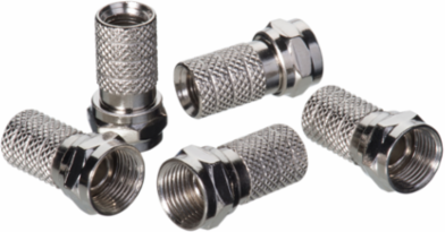

Ideal Industries 85-035 RG-59 F Twist-on Connector 10 Pack, 1/4 Inch x 1/4 Inch, 75Ω Coaxial
- MPN: 85-035
- UPC: 783250850358
- PPN: IDL-85-035
CAD
$22.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
RG-59 F Twist-on Connector 10 Pack, 1/4 Inch x 1/4 Inch, 75Ω Coaxial
Features
- Accepts RG-59 coax cables
- Designed for use in indoor video applications
- Reusable, can be removed and reused
- Industry standard 1/4” x 1/4” cable preparation
- Designed for 75Ω coaxial cables
- 7/16” nut diameter with 3/8-32 thread
- 1) Prepare RG-59 coax with a 1/4” x 1/4” strip, and fold back the braiding.
- 2) Twist the connector on to the cable clockwise until the white dielectric becomes flush with the bottom of the nut. 3) Attach connector to device.
Documentation & Downloads
Specifications
Key Specifications
- Connector Model
- 59FTW
- Dielectric diameter range
- .142” - .148”
- Recommended cable prep/stripping tools
- 45-605 PrepPRO™; 45-321
Center conductor rangeAll
Outer jacket diameter range.230” - .250”
Recommended crimp toolsNone required
