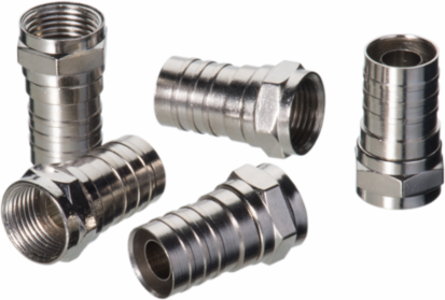

Ideal Industries 85-017 RG-6 F Hex Crimp Connector - 50 Pack, Nickel Plated Brass, 7/16 Inch Nut Diameter
- MPN: 85-017
- UPC: 783250850174
- PPN: IDL-85-017
CAD
$32.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
RG-6 F Hex Crimp Connector - 50 Pack, Nickel Plated Brass, 7/16 Inch Nut Diameter
Features
- Accepts RG-6 coax cables
- Designed for use in indoor video applications
- Hex crimp cable retention requires .320” hex crimp
- Industry standard 1/4” x 1/4” cable preparation
- Hex crimp cable retention, requires .320” hex crimp
- Nickel plated brass bodies
- Designed for 75Ω coaxial cables
- 7/16” nut diameter with 3/8-32 thread
- 1) Prepare RG-6 coax with a 1/4” x 1/4” strip, and fold back the braiding.
- 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
- 3) Place connector in IDEAL crimp tool with .320” hex and terminate. Crimp only the back sleeve portion of the connector – not the nut or shoulder area of connector.
- 4) Attach connector to device.
Documentation & Downloads
Specifications
Key Specifications
- Connector Model
- 6FCR
- Dielectric diameter range
- .175” - .183”
- Recommended cable prep/stripping tools
- 45-605 PrepPRO™; 45-321
Center conductor rangeAll
Outer jacket diameter range.254” - .278”
Recommended crimp tools30-503 Crimpmaster™ (30-582 dieset); 30-433
