Ideal Industries 85-057 RG-6 Quad F Hex Crimp Connector 10 Pack, 7/16 Inch Nut Diameter, Nickel Plated Brass
- MPN: 85-057
- UPC: 783250850570
- PPN: IDL-85-057
CAD
$22.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

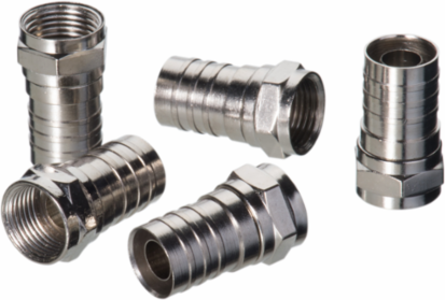

RG-6 Quad F Hex Crimp Connector 10 Pack, 7/16 Inch Nut Diameter, Nickel Plated Brass
Features
- Accepts RG-6 Quad coax cables
- Designed for use in indoor video applications
- Hex crimp cable retention requires .350” hex crimp
- Industry standard 1/4” x 1/4” cable preparation
- Nickel plated brass bodies
- Designed for 75Ω coaxial cables
- 7/16” nut diameter with 3/8-32 thread
- 1) Prepare RG-6 Quad coax with a 1/4” x 1/4” strip, and fold back the braiding.
- 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
- 3) Place connector in IDEAL crimp tool with .350” hex and terminate. Crimp only the back sleeve portion of the connector – not the nut or shoulder area of connector.
- 4) Attach connector to device.
Documentation & Downloads
Specifications
Key Specifications
- Connector Model
- 6QFCR
- Dielectric diameter range
- .175” - .183”
- Recommended cable prep/stripping tools
- 45-605 PrepPRO™
Center conductor rangeAll
Outer jacket diameter range.275” - .305”
Recommended crimp tools30-503 Crimpmaster™ (30-582 dieset); 30-433
