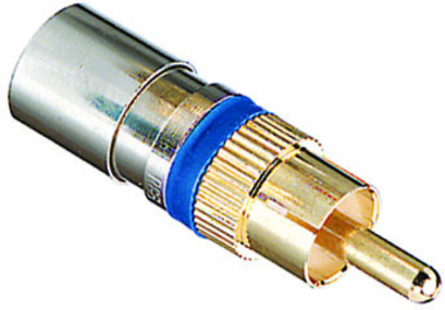

Ideal Industries 92-582 RG-6 RCA RTQ™ Compression Connector - 4 Pack, Frequency Range 0-3GHz, Brass Body
- MPN: 92-582
- UPC: 783250925827
- PPN: IDL-92-582
CAD
$21.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The IDEAL RTQ™ series of RCA connectors offers a single connector solution to cover a range of coax types. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and a gold plated contact pin.RCA connectors are available for use in applications and installations from 5MHz to 3GHz, including video and audio based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.
Features
- Accepts RG-6/RG-6 Quad coax cables
- RTQ™ design allows Regular/Tri/Quad shield cables to work in a single connector – no need to carry cable specific connectors
- 50 multi-color bands included in each jar of 35 for color coding
- Designed for use in audio and video applications
- Industry standard 21mm compressed length – same compression setting as F connectors
- All brass, with nickel plated bodies with gold plated contact pin and retention collar
- Designed for optimal performance on 75Ω coaxial cables
- >40 pounds cable retention on all models
Documentation & Downloads
Specifications
Key Specifications
- Connector Model
- 6RCARTQ
- Dielectric diameter range
- .175” - .183”
- Recommended cable prep/stripping tools
- 45-605 PrepPRO™; 45-321
- Frequency range
- 0 MHz to 3 GHz
Center conductor range20-18 AWG Solid (.029” - .040”)
Outer jacket diameter range.267” - .305”
Recommended compression tools30-793 OmniSeal™ PRO XL; 33-632 Linear X®3
