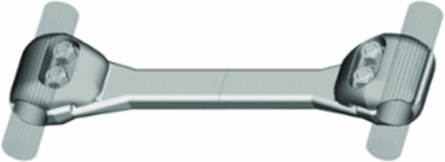

Burndy S2R493A6BCH Rigid 6 Inch Spacer, 3000 kcmil AL, 138 kV, 2 Piece Design, 9.38 Inch Length
- MPN: S2R493A6BCH
- UPC: 781810489291
- PPN: BUR-10103925
CAD
$1049.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Rigid 6 IN Spacer, 3000 kcmil ASC, 138kV
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 3.00 in |
|---|---|
| Dimension - L Length Overall mm | 238 mm |
| Dimension - Width inch | 3.00 in |
| Dimension - Height inch | 3.62 in |
|---|---|
| Dimension - Length Overall inch | 9.38 in |
| Dimension - Width mm | 76 mm |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Conductor - AL Str Size Range | 3000 kcmil |
|---|---|
| Number Of Conductors | 2 |
| Conductor - Connection Combination | Cable Spacer |
|---|
General
| Application | Substation |
|---|---|
| Connector Type | Spacer |
| Material | Aluminum Alloy, Cast |
| Plated | N |
| UPC | 781810489291 |
| Clamping Element Design | 2 Piece Design |
|---|---|
| Installation Torque Recommended in-lb | 660 LBS/in |
| One Wrench Installation | Y |
| Plating Type | Unplated |
| UPC 12 Digit | 7818104892911 |
Electrical Ratings
| Rating - KVA | 138 kV |
|---|
