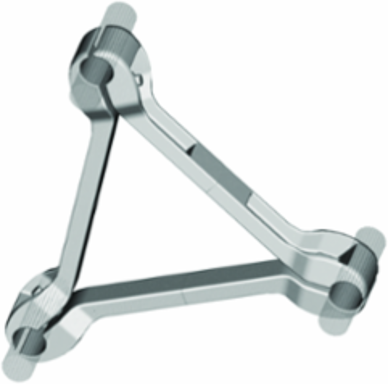

Burndy S3GBP48A Three Conductor Spacer, 1750-2000 kcmil AAC, 1590-1780 kcmil ACSR, 1.630 Inch Diameter
- MPN: S3GBP48A
- UPC: 781810269626
- PPN: BUR-26001162
CAD
$1570.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Three Conductor Spacer, 1750 kcmil-2000 kcmil AAC, 1590(45/7) kcmil-1750(84/19) kcmil ACSR, 550kV
Documentation & Downloads
Specifications
Key Specifications
| Application | Substation |
|---|---|
| Installation Torque Recommended in-lb | 480 in-lb |
| Material | Aluminum Alloy, Cast |
| Plating Type | Unplated |
| UPC 12 Digit | 7818102696266 |

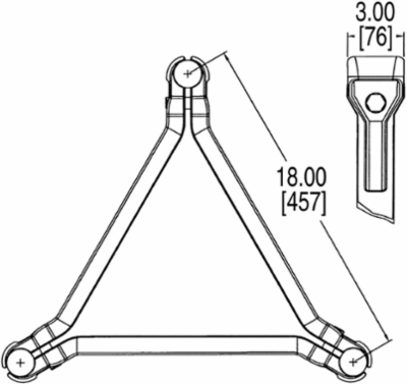

| Dimension - Diameter Max Size inch | 1.630 in |
| Dimension - Width inch | 3.00 in |
| Rating - KVA | 550 kV |
| Conductor - ACSR Str Size Range | 1590 (45/7) Lapwing kcmil-1780 (54/19) kcmil |
| Conductor - AL Str Size Range | 1750 kcmil-2000 kcmil |
| Certification - ETL | No |
| Certification - cULus | No |
| UL Listed | No |
| Connector Type | Spacer |
|---|---|
| Item Type | 4D |
| Plated | N |
| UPC | 781810269626 |
| Dimension - B Length inch | 3.00 in |
| Dimension - Diameter Min Size inch | 1.502 in |
| Dimension - Width mm | 76 mm |
| Conductor - ACSR Str Size | 1590 (45/7) Lapwing kcmil;1590 (54/19) Falcon kcmil;1780 (54/19) kcmil |
| Conductor - AL Str Size | 1750 kcmil;1800 kcmil;1900 kcmil;2000 kcmil |
| Certification - CSA Approved | No |
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | EX |
