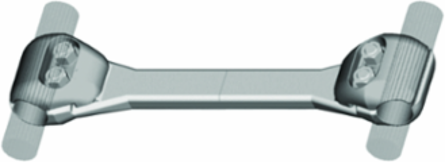

Burndy S2R41ACG7 Rigid 6 Inch Spacer for 795 kcmil Conductors, 230 kV, Aluminum Alloy
- MPN: S2R41ACG7
- UPC: 621945154124
- PPN: BUR-27009041
CAD
$888.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Rigid 6 IN Spacer, 795 kcmil ASC, 230kV
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 2.00 in |
|---|---|
| Dimension - L Length Overall mm | 191 mm |
| Dimension - Width inch | 2.00 in |
| Dimension - Height inch | 2.06 in |
|---|---|
| Dimension - Length Overall inch | 7.51 in |
| Dimension - Width mm | 51 mm |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Conductor - AL Str Size Range | 795 kcmil |
|---|---|
| Number Of Conductors | 2 |
| Conductor - Connection Combination | Cable Spacer |
|---|
General
| Application | Substation |
|---|---|
| Connector Type | Spacer |
| Material | Aluminum Alloy |
| Plated | N |
| UPC | 621945154124 |
| Clamping Element Design | 2 Piece Design |
|---|---|
| Installation Torque Recommended in-lb | 480 in-lb |
| One Wrench Installation | Y |
| Plating Type | Unplated |
| UPC 12 Digit | 6219451541244 |
Electrical Ratings
| Rating - KVA | 230 kV |
|---|
