Weidmuller

Weidmuller 8713720000 RIM 2 6/24VDC GN

  • MPN: 8713720000
  • PPN: WDM-8713720000

CAD

$7.99

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

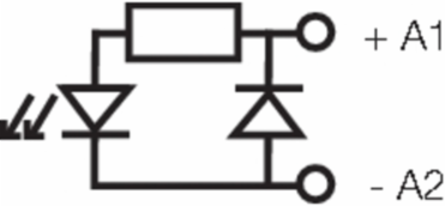

RIDERSERIES FG, LED module with freewheel diode, Rated control voltage: 6…24 V DC, Plug-in connection

Documentation & Downloads

Specifications

General Data

Colourblack

Approvals

ApprovalscURus, EAC
UL File Number SearchE223759
ROHSConform

Dimensions And Weights

Width12.5 mm
Height9 mm
Depth34.5 mm
Net weight3.2 g
Width (inches)0.492 inch
Height (inches)0.354 inch
Depth (inches)1.358 inch

Connection Data

Wire connection methodPlug-in connection

Rated Data Ul

Certificate No. (cURus)E223759

Input

Rated control voltage6...24 V DC
Protective circuitFree-wheeling diode
Status indicatorGreen LED

Classifications

ETIM 6.0EC002586
eClass 9.127-37-10-10
UNSPSC32-11-15-03
ETIM 7.0EC002586
eClass 10.027-37-10-10

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Humidity40 °C / 93 % rel. humidity, no condensation
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...70 °C
Operating temperature, max.70 °C
Storage temperature, max.70 °C
Operating temperature-40 °C...70 °C

Further Details Of Approvals / Standards

StandardsUL508
Certificate No. (cURus)E223759
RIM 2 6/24VDC GN
RIM 2 6/24VDC GN
RIM 2 6/24VDC GN
