Weidmuller 7760056016 RIM 2 24/60VDC
- MPN: 7760056016
- PPN: WDM-7760056016
CAD
$3.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
D-SERIES, LED module with freewheel diode, Rated control voltage: 24…60 V DC, Plug-in connection
Documentation & Downloads
Specifications
General Data
| Colour | black |
|---|
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|

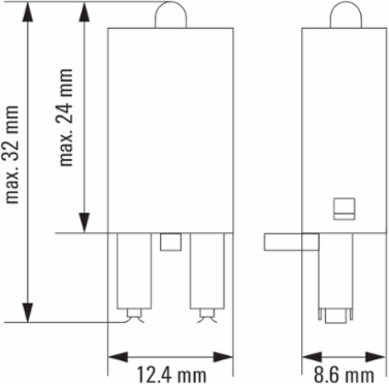

Dimensions And Weights
| Width | 12.4 mm |
|---|---|
| Height | 8.6 mm |
| Depth | 32 mm |
| Net weight | 2 g |
| Width (inches) | 0.488 inch |
|---|---|
| Height (inches) | 0.339 inch |
| Depth (inches) | 1.26 inch |
Connection Data
| Wire connection method | Plug-in connection |
|---|
Input
| Rated control voltage | 24...60 V DC |
|---|---|

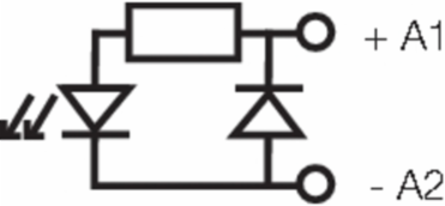

| Protective circuit | Free-wheeling diode |
| Status indicator | Green LED |
|---|
Classifications
| ETIM 6.0 | EC002586 |
|---|---|
| eClass 9.1 | 27-37-10-10 |
| ETIM 7.0 | EC002586 |
|---|---|
| eClass 10.0 | 27-37-10-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
