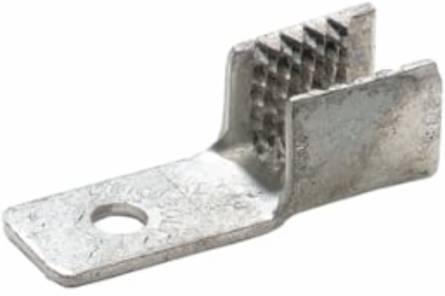

Dragon Tooth 22R106 RING TERM CU 24-15 AWG NO6 BOLT
Dragon Tooth 22R106 RING TERM CU 24-15 AWG NO6 BOLT
- MPN: 22R106
- UPC: 786210890005
- PPN: T-B-22R106
- UNSPSC: 39121432
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$0.94/ EA
Description
Insulation Piercing Magnet Wire Ring Terminal, Length .91 Inches, Width .30 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 10, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
Additional Information
- Application
- For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
- Effective Date
- 19761122
- Product Name
- STA-KON AND CATAMOUNT TERMINAL
- Special Functions
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- Sub Brand / Label
- Dragon Tooth
Brand / LabelSta-Kon
MaterialCopper
Product TypeRing Terminal
StandardsUL E9809
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
