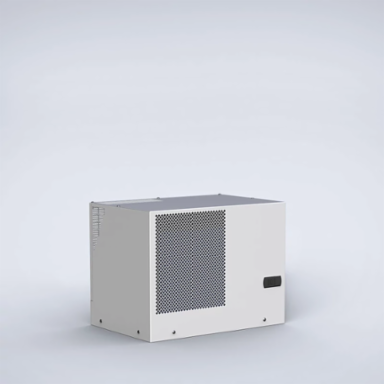

nVent Hoffman CUH38004 Roof cooling unit 3800W, 400-460V, Mild steel, IP54
- MPN: CUH38004
- UPC: 783510461751
- PPN: HOF-CUH38004
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This roof cooling unit provides cooling and is placed on top of the enclosure. This Roof Mounting Cooling Unit, CUH, CUH38004 item measures 480x800x450mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Roof cooling unit with a IP 54 protection degree
- The cooling unit can provides cooling to enclosure's that do not have enough space on the door or side panels whether standalone or as part of an enclosure assembly
- Floor standing enclosures can be cooled independently of each other, if required; This avoids cooling the entire enclosure assembly, reducing the amount of energy required, saving unnecessary costs
- To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01; Once installed, the door switch will turn the cooling unit off, once the door is opened
- High performance cooling unit for roof mounting, the air conditioners cover a cooling capacity range from 600 W to 3800 W
- Condensation management system, which prevents all condensation from penetrating into the enclosure
- All models are equipped with a condensation dissipator, from 1400 W up to 3800 W units
- Easy installation, with a quick release mounting frame
- Common to all models is the self cleaning condenser coil, which eliminates the necessity for an air filter, avoiding standard maintenance
- All models are equipped with digital display
- The cooling capacity for specific conditions are indicated in the diagrams
- Ozone friendly refrigerant R134a
- Temperature limits inside: +25 °C to +45 °C
- Temperature limits outside: +20 °C to +55 °C
Documentation & Downloads
Specifications
Key Specifications
- Length
- 19.27 inch
- Height
- 31.85 inch
- Height imperial (H) (inch)
- 18.9
- Width imperial (W) (inch)
- 31.5
- Depth imperial (D) (inch)
- 17.72
- Protection Rating
- IP54
- Finish WCS-6868
- Powder Coated
- Style WCS-6918
- Cooling Capacity L35L35: 3800; L35L50: 2700
- Frequency WCS-429335 (hertz)
- 50/60
Width31.60 inch
Weight191.50 pound
Height metric (H) (millimetre)480
Width metric (W) (millimetre)800
Depth metric (D) (millimetre)450
MaterialMild Steel
ColorLight Gray
Phase Quantity3
