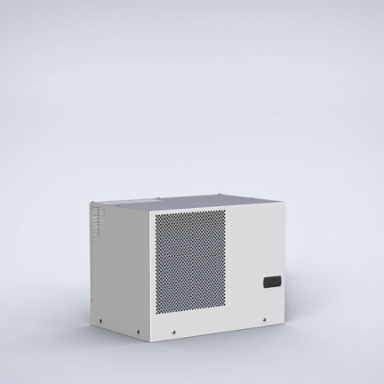

nVent Hoffman CUH09002 Roof cooling unit 900W, 230V, Mild steel, IP54
- MPN: CUH09002
- UPC: 783510461669
- PPN: HOF-CUH09002
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This roof cooling unit provides cooling and is placed on top of the enclosure. This Roof Mounting Cooling Unit, CUH, CUH09002 item measures 335x600x325mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Roof cooling unit with a IP 54 protection degree
- The cooling unit can provides cooling to enclosure's that do not have enough space on the door or side panels whether standalone or as part of an enclosure assembly
- Floor standing enclosures can be cooled independently of each other, if required; This avoids cooling the entire enclosure assembly, reducing the amount of energy required, saving unnecessary costs
- To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01; Once installed, the door switch will turn the cooling unit off, once the door is opened
- High performance cooling unit for roof mounting, the air conditioners cover a cooling capacity range from 600 W to 3800 W
- Condensation management system, which prevents all condensation from penetrating into the enclosure
- All models are equipped with a condensation dissipator, from 1400 W up to 3800 W units
- Easy installation, with a quick release mounting frame
- Common to all models is the self cleaning condenser coil, which eliminates the necessity for an air filter, avoiding standard maintenance
- All models are equipped with digital display
- The cooling capacity for specific conditions are indicated in the diagrams
- Ozone friendly refrigerant R134a
- Temperature limits inside: +25 °C to +45 °C
- Temperature limits outside: +20 °C to +55 °C
Documentation & Downloads
Specifications
Key Specifications
- Length
- 13.56 inch
- Height
- 24.25 inch
- Height imperial (H) (inch)
- 13.19
- Width imperial (W) (inch)
- 23.62
- Depth imperial (D) (inch)
- 12.8
- Protection Rating
- IP54
- Finish WCS-6868
- Powder Coated
- Style WCS-6918
- Cooling Capacity L35L35: 900; L35L50: 760
Width24.00 inch
Weight76.40 pound
Height metric (H) (millimetre)335
Width metric (W) (millimetre)600
Depth metric (D) (millimetre)325
MaterialMild Steel
ColorLight Gray
Frequency WCS-429335 (hertz)50/60
