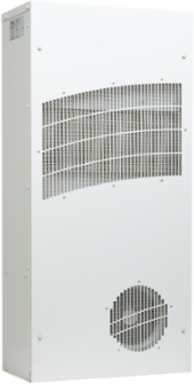

nVent Hoffman TX332826100 ClimaGuard Outdoor Heat Exchanger 28 Watts 230V NEMA Type 4
- MPN: TX332826100
- UPC: 783510252663
- PPN: HOF-TX332826100
- UNSPSC: 40101802
CAD
$4192.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ClimaGuard Outdoor Heat Exchangers offer reliable, low maintenance, closed-loop cooling. This ClimaGuard Air-to-Air Heat Exchanger Outdoor, item TX332826100 is rated for X33 28w/F 230v
Features
- Unique counterflow aluminum core for high efficiency and high performance heat transfer
- Engineered for temperature extremes, corrosive environments and wind driven rain
- Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
- Variable speed blowers standard on DC powered units for quiet running
- Filterless design for low maintenance and easy cleaning
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Surface or recessed mount capable
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Capacity Watts Per °C
- 50
- Height (H)
- 838
- Depth (D)
- 206
- Operating Temperature
- -40
- Product Family
- ClimaGuard
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Weight
- 54
- Max Watts Per °F
- 28
- Thickness (T)
- 1.21
- Power Consumption
- 28 W per deg F max
- Mounting
- Surface Mounted
Capacity Watts Per °F28
Nominal Voltage230
Width (W)399
Max Current0.4
Protection RatingNEMA Type 4
MaterialMild Steel
ColorLight Gray
NEMA Rating4 Watertight
Voltage AC200
Max Watts Per °C50
Temperature Range-40 to 149 deg F
Housing MaterialMild Steel
Dimensions33 x 15.7 x 8.1 in
