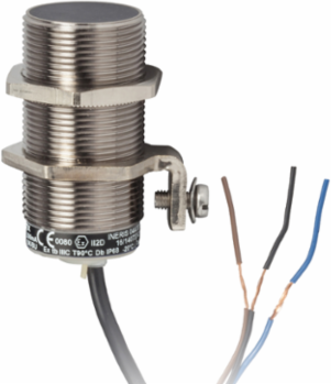

Telemecanique Sensors XSAV12373EX Rotation monitoring for hazardous area dust, M30, Sn10mm, 120...3000c/mn, NC, cable 2 m
- MPN: XSAV12373EX
- PPN: TES-XSAV12373EX
CAD
$351.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This sensor is dedicated to rotation monitoring in hazardous areas. It complies with the 2014/34/EU - ATEX directive. It provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading. Dedicated to rotation monitoring, it is suitable for conveyor belts, bucket elevators and Archemedian screws. And also for grinders, crushers, pumps, centrifugal driers, mixers, etc. This product is a cylindrical sensor, flush mountable in metal, diameter 30mm, threaded M30 x 1.5 It features a cylindrical metal case and a 2m long cable. It has a sensing distance of 10mm. Its adjustable frequency range is 120 impluses/min to 3000 impluses/min. Three-wire, DC supply, 12V to 48V, NC function, PNP solid-state output.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NC
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Sensor Name
- XSA
- Size
- 30 mm
- Ip Degree Of Protection
- IP67 IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Enclosure Material
- nickel plated brass
- Device Application
- rotation monitoring ATEX dust
Discrete Output TypePNP
Type Of Output Signaldiscrete
Cable Length2 m
Materialmetal
Wiring Technique3-wire
Series NameApplication
[Sn] Nominal Sensing Distance10 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M30
Output Circuit TypeDC
[Us] Rated Supply Voltage12...48 V DC reverse polarity protection
Complementary
- Current Consumption
- 0...15 mA no-load
- Repeat Accuracy
- 3% of Sr
- Maximum Voltage Drop
- <1.8 V closed state)
- Marking
- II2 D-Ex tb IIIC T90°C Db IP67
- Switching Frequency
- <= 800 Hz
- Sensing Range
- > 8...15 mm
- Differential Travel
- 3...15% of Fr
- Supply Voltage Limits
- 10-58 V DC
- Detection Face
- frontal
- Front Material
- PPS
Status Ledoutput state 1 LED red)
Operating Zone0-8 mm
Threaded Length57 mm
Length81 mm
Thread TypeM30 x 1.5
Adjustable Frequency Range120-3000 cyc/mn
Run-Up Delay At Power-Up9 s standard
Wire Insulation MaterialPVC
Cable Composition3 x 0.34 mm²
Environment
- Product Certifications
- IEC-Ex INE 17.0006 || INERIS 04ATEX0022
- Standards
- EN/IEC 60079-31 || EN/IEC 60079-0
- Directives
- 2014/34/EU - ATEX directive
Ambient Air Temperature For Operation-20-60 °C
Dust Zonezone 21 - 22
Environmental Characteristichazardous location
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
