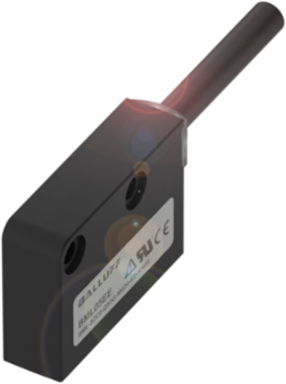

Balluff BML-S2C0-Q53L-M624-L0-KA02 Incremental rotary magnetic encoder system BML-S2C0-Q53L-M624-L0-KA02
- MPN: BML-S2C0-Q53L-M624-L0-KA02
- PPN: BAL-BML079L
CAD
$833.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our BML incremental rotary magnetic encoders are used for precise positioning and speed control of rotational axles and shafts. Balluff offers the appropriate sensor for almost every shaft diameter. Using standardized digital and analog interfaces, our BML encoders can be integrated into almost all controllers and also provide the proper drive in torque motors.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 10 x 25 x 35 mm |
|---|---|
| Housing material | PBT |
| Resolution | 100 µm |
| Non-linearity max. | ±400 µm (z=1…5 mm, y=±2 mm) |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP67 |
| Connection | Cable, 2 m, PUR |
|---|---|
| Interface | Digital A/B (HTL) |
| Read distance | 0.01-6.5 mm |
| Reference signal | Pole-periodic |
| Ambient temperature | -20-80 °C |
| Approval/Conformity | cURus, CE, EAC, WEEE |
