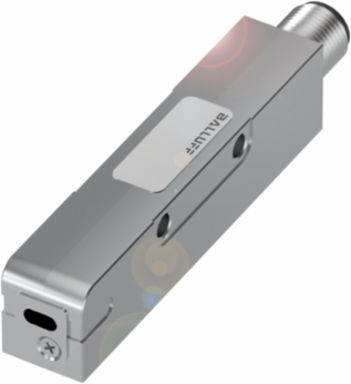

Balluff BML-S1G0-S77G-M5EA-D0-S284 Absolute Rotary Magnetic Encoder, 10 m Resolution, 40 m Range
- MPN: BML-S1G0-S77G-M5EA-D0-S284
- PPN: BAL-BML0539
CAD
$1737.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Balluff's absolute linear BML magnetic encoders provide for absolute position feedback in any position – ready to use and without a reference run. Our encoders also work with high accuracy on large diameters, are extremely compact and easy to integrate into motors.
Documentation & Downloads
Specifications
Additional
| Resolution | 10 b5m |
|---|---|
| Operating Voltage | 4.75-5.25 VDC, 10-28 VDC |
| Interface | SSI, Analog sin/cos (1 Vpp) |
| Dimension | 16 x 18.5 x 80.3 mm |
| Ambient Temperature Range | -20 to 70 b0C |
| Measuring Range | 40 m |
|---|---|
| Read Distance | 0.01-0.8 mm |
| Connection | Connector, M12x1-Male, 12-pin |
| Housing Material | Die-cast zinc, Nickel plated, Chrome-plated |
| Approval/Conformity | cURus, CE, EAC, WEEE |
