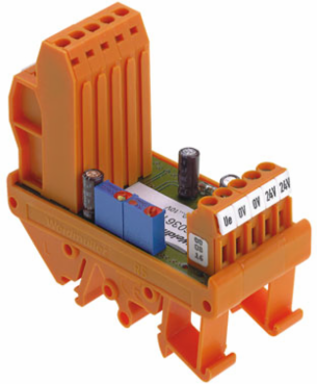

Weidmuller 1160361001 RS U-D8 0...10V
- MPN: 1160361001
- PPN: WDM-1160361001
CAD
$387.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

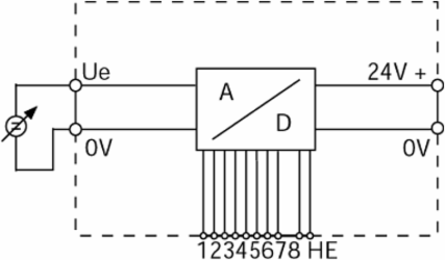

Description
AD converter, Input : 0-10 V, Output : 8-bit pulse
Documentation & Downloads
Specifications
General Data
| Accuracy | ± 1 LSB |
|---|---|
| Galvanic isolation | Without isolation |
| Rail | TS 35, TS 32 |
| Current consumption | 35 mA (plus output current) |
|---|---|
| Input/Output | Analogue / 8 bit |
| Voltage supply | 24 V DC |
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 70 mm |
|---|---|
| Width | 35 mm |
| Height | 72 mm |
| Net weight | 72 g |
| Length (inches) | 2.756 inch |
|---|---|
| Width (inches) | 1.378 inch |
| Height (inches) | 2.835 inch |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Clamping range, rated connection | 4 mm² |
|---|---|
| Clamping range, max. | 4 mm² |
Input
| Number of inputs | 1 |
|---|---|
| Supply voltage (input) | 24 V DC |
| Input voltage | 0...10 V |
|---|---|
| Input resistance, voltage | ≥ 400 kΩ |
Classifications
| ETIM 6.0 | EC002653 |
|---|---|
| eClass 9.0 | 27-21-01-20 |
| eClass 10.0 | 27-21-01-20 |
| ETIM 7.0 | EC002653 |
|---|---|
| eClass 9.1 | 27-21-01-90 |
| UNSPSC | 30-21-18-01 |
Output
| Number of outputs | 8-bit (1-bit signed) |
|---|---|
| Output current | ≤ 25mA (as source) |
| Conversion time | ≤ 4 µs |
| Output level | 17 V = H, 0 V = L |
|---|---|
| Cut-off frequency (-3 dB) | 5 kHz at full scale (sinus) |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | EN 61000-6 |
|---|
| Galvanic isolation | Without isolation |
|---|
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | 0 °C...50 °C |
| Operating temperature, min. | 0 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
