Weidmuller 1845141000 SAIL-VSB-180-10U(0.5)
- MPN: 1845141000
- PPN: WDM-1845141000
CAD
$27.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

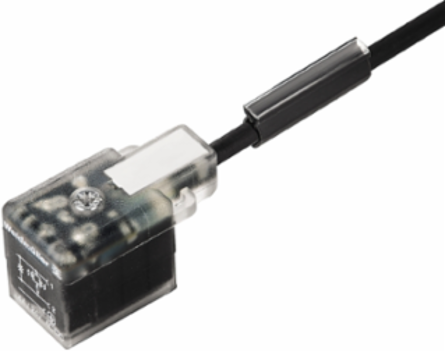

Valve plug with integral seal, One end without connector - valve plug, B
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 328 g
General Technical Data
- Version
- One end without connector - valve plug
- Coding

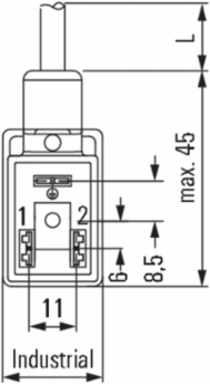

- Industrial design B (11 mm)
- Contact surface
- tinned
- Rated voltage
- 24 V
- Temperature range of housing
- -25…+80 °C
Connection threadMiscellaneous
Protection degreeIP67, when screwed in
LEDYes
Rated current4 A

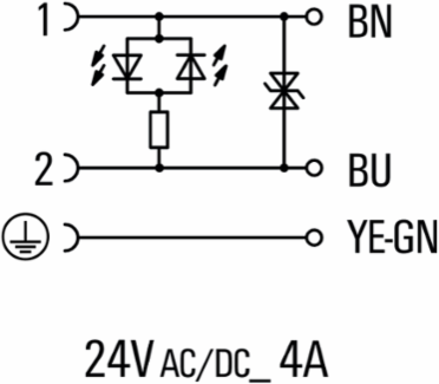

All valve plugs are fitted with protective circuitsSuppressor diode
Technical Specifications For Cable
- Number of poles
- 3
- Cable length
- 10 m
- Sheath material
- PUR
- Halogen
- No
- Temperature range, stationary
- -50...80 °C
Core cross-section0.5 mm²
ShieldedNo
Sheathing colourblack
Temperature range, moving-25...80 °C
Suitable for cable carriersYes
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-12
- eClass 10.0
- 27-06-03-12
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC30-21-18-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 80 °C
- Operating temperature, max.
- 80 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-25 °C
