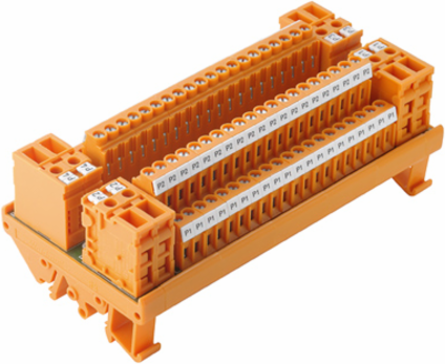

Weidmuller 1128110000 RS VERT 4P 20X4 Z
- MPN: 1128110000
- PPN: WDM-1128110000
CAD
$368.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RS VERT, 4 P, Tension-clamp connection
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Length
- 145 mm
- Width
- 70 mm
- Height
- 52 mm
- Net weight
- 295.681 g
Length (inches)5.709 inch
Width (inches)2.756 inch
Height (inches)2.047 inch
Supply Connection
- Type of connection
- Screw connection
- Clamping range, max.
- 6 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Wire cross-section, min. AWG
- AWG 26
- Tightening torque, min.
- 0.5 Nm
- Stripping length
- 13 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.5 mm²
Flexible, min. H05(07) V-K0.5 mm²
Flexible with sleeve, max.4 mm²
Ferrule with plastic collar, max.4 mm²
Wire cross-section, max. AWGAWG 10
Tightening torque, max.0.6 Nm
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Surge voltage category
- III
- Pulse voltage test (1,2/50μs)
- 6 kV
Rated insulation voltage< 600 V AC
Pollution severity level2
Insulation test voltage1.65 kVAC

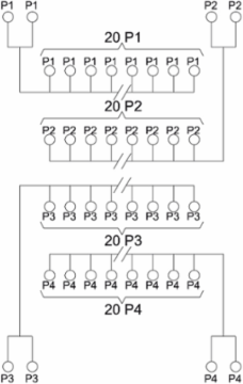

Connection Data
- Number of potentials
- 4
- Supply plug-in connectors
- TOP 1.5GS2/180
Distribution PCB connectorsLM2NZF 5.08mm
Connection Field
- Type of connection
- Tension-clamp connection
- Clamping range, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 2.5 mm²
- Flexible, max. H05(07) V-K
- 1.5 mm²
- Flexible with sleeve, min.
- 0.25 mm²
- Min. wire cross-section, AWG
- AWG 24
- Stripping length
- 7.5 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.2 mm²
Flexible, min. H05(07) V-K0.2 mm²
Flexible with sleeve, max.1.5 mm²
Sleeve with plastic collar, max.1.5 mm²
Max. wire cross-section, AWGAWG 14
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-14-11-52
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- -25...50 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40...60 °C
Rating Data
- Rated voltage (text)
- < 600 V AC
- Maximum current per distributor connection
- 15 A
Maximum current per potential connection30 A
Total operating current120 A
