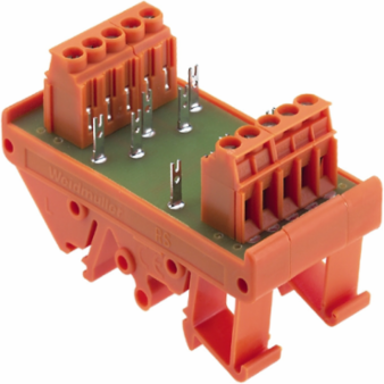

Weidmuller 0329860000 RSX LOETST. GSF 5/5
- MPN: 0329860000
- PPN: WDM-0329860000
CAD
$61.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Assembly modul, Number of signals: 5
Specifications
Approvals
| Approvals | CE |
|---|
| ROHS | Conform |
|---|

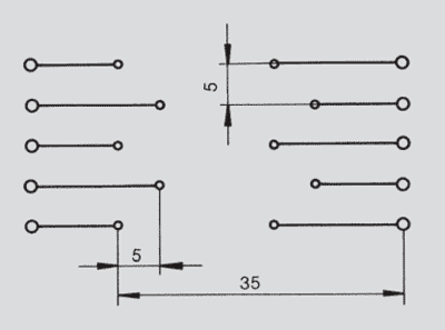

Dimensions And Weights
| Length | 35 mm |
|---|---|
| Width | 70 mm |
| Height of lowest version | 53 mm |
| Length (inches) | 1.378 inch |
|---|---|
| Width (inches) | 2.756 inch |
| Net weight | 36 g |
Connection Data
| Type of connection | Flat-blade connection |
|---|---|
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire cross-section, solid, max. | 4 mm² |
|---|---|
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
Classifications
| ETIM 6.0 | EC002780 |
|---|---|
| eClass 9.0 | 27-14-11-52 |
| eClass 10.0 | 27-14-11-52 |
| ETIM 7.0 | EC002780 |
|---|---|
| eClass 9.1 | 27-14-11-52 |
| UNSPSC | 30-21-18-01 |
Temperatures
| Operating temperature range, max. | 100 °C |
|---|---|
| Operating temperature, max. | 60 °C |
| Storage temperature, max. | 60 °C |
| Operating temperature range, min. | -50 °C |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
