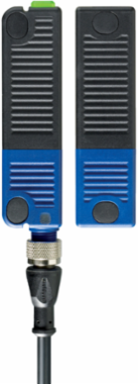

Schmersal 103001534 RFID Safety Sensor, 25mm Height, Latching, IP65/IP67/IP69, Thermoplastic Enclosure
- MPN: 103001534
- PPN: SCM-103001534
CAD
$710.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RFID Safety Sensor, 25mm Height, Latching, IP65/IP67/IP69, Thermoplastic Enclosure
Features
- Universal coding with RFID technology
- with latching
- Thermoplastic enclosure
- RFID-technology for needs-based protection against tampering
- optionally with integrated magnetic latching
Documentation & Downloads
Specifications
Electrical data
| Time to readiness, maximum | 5,000 ms |
|---|
| Switching frequency, maximum | 1 Hz |
|---|
Electrical data - AS-Interface specification
| AS-i Specification | Safety-Slave |
|---|---|
| AS-i Profile | S-0.B.F.E |
| AS-i, ID-Code | 0xB |
| AS-i, ID-Code2 | 0xE |
| AS-i Input, Channel 2 | Data bits DI 2 / DI 3 = dynamic code transmission |
| AS-i Parameter bits, P0 | Actuator in |
| AS-i Parameter bits, P2 | No function |
| Note (AS-i Parameter bits) | Set the parameter outputs to "1111" (0xF) | FID: periphery error |
| Note (AS-i Input module address) | Preset to address 0, can be changed through AS-interface bus master or hand-held programming device |
| AS-i Version | V 3.0 |
|---|---|
| AS-i, IO-Code | 0x0 |
| AS-i, ID-Code1 | 0xF |
| AS-i Input, Channel 1 | Data bits DI 0 / DI 1 = dynamic code transmission |
| AS-i Outputs, DO 0 … DO 3 | No Function |
| AS-i Parameter bits, P1 | Enabling inhibit (tamper protection time) active (FID)) |
| AS-i Parameter bits, P3 | Internal device error (FID) |
| AS-i Input module address | 0 |

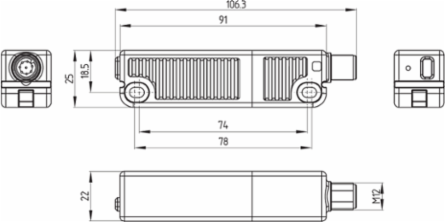

Mechanical data - Dimensions
| Length of sensor | 22 mm |
|---|---|
| Height of sensor | 25 mm |
| Width of sensor | 106.3 mm |
|---|
Pin assignment
| PIN 1 | AS-Interface + |
|---|---|
| PIN 3 | AS-Interface - |
| PIN 2 | n.c. (≤ 30 VDC) |
|---|---|
| PIN 4 | n.c. (≤ 30 VDC) |
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
General data - Features
| Latching | Yes |
|---|---|
| Integral system diagnostics, status | Yes |
| Safety functions | Yes |
|---|---|
| Number of actuating directions | 3 |
General data
| Standards | EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508 |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Frequency band RFID | 125 kHz |
| Housing construction form | Block |
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Reaction time, maximum | 100 ms |
| Coding | Universal coding |
|---|---|
| Working principle | RFID |
| Transmitter output RFID, maximum | -6 dB/m |
| Installation conditions (mechanical) | not flush |
| Gross weight | g |
| Duration of risk, maximum | 200 ms |
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 61508 |
|---|---|
| Category | 4 |
| PFD value | 3.24 x 10⁻⁵ |
| Mission time | 20 Year(s) |
| Performance Level, up to | e |
|---|---|
| PFH value | 5.13 x 10⁻¹⁰ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
Electrical data - AS Interface
| Rated operating voltage | 18 ... 31.6 VDC (Protection against polarity reversal) |
|---|
| AS-i Current consumption, maximum | 100 mA |
|---|
Ambient conditions
| Degree of protection | IP65 | IP67 | IP69 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, maximum | 93 % |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Protection class | III |
| Ambient temperature | -25 ... +70 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Note (Relative humidity) | non-condensing | non-icing |
| Restistance to shock | 30 g / 11 ms |
| Permissible installation altitude above sea level, maximum | 2,000 m |
Mechanical data - Connection technique
| Termination | Connector plug M12, 4-pole, (A-coding) |
|---|
Mechanical data - Switching distances according EN IEC 60947-5-3
| Switch distance, typical | 12 mm |
|---|---|
| Assured switching distance "OFF" S | 20 mm |
| Assured switching distance "ON" S | 10 mm |
|---|
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Hysteresis (Switching distance), maximum | 2 mm |
| Note (Repeat accuracy R) | Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle).Minimum clearance between two sensor systems 100 mm. |
| Type of the fixing screws | 2x M4 (cylinder head screws with washers DIN 125A / form A) |
| Tightening torque of the fixing screws, maximum | 2.5 Nm |
| Note (Mechanical life) | Actuating speed < 0.25 m/s | Operations for door weights ≤ 5 kg |
|---|---|
| Repeat accuracy R | 0.5 mm |
| Latching force, approx. | 18 N |
| Tightening torque of the fixing screws, minimum | 2.2 Nm |
Accessory
| Recommendation (actuator) | RST 36-1-R |
|---|
Approvals - Standards
| Certificates | TÜV | cULus | ASi-SaW |
|---|
Status indication
| Note (LED switching conditions display) | (1) green/red LED (AS-i Duo LED):Supply voltage / communication error / slave address = 0 / periphery error detected / Tamper protection time active | (2) yellow LED: device condition (enabling status) / hysteresis signal / device error |
|---|
