Weidmuller 1419000000 RSV1,6 B36 GR BX
- MPN: 1419000000
- PPN: WDM-1419000000
CAD
$9.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

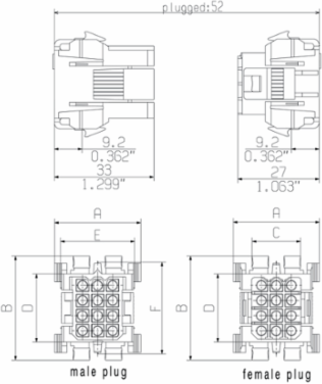

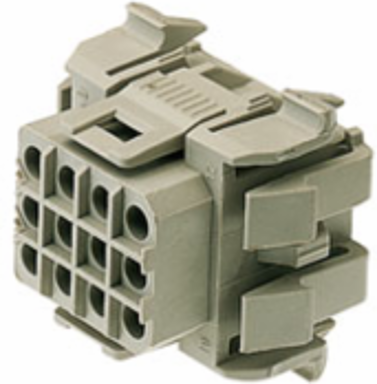

PCB plug-in connector, female plug, 5.00 mm, Number of poles: 36, 180°, Crimp connection, Clamping range, max. : 3.31 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E92202
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E92202
ROHSConform
Dimensions And Weights
- Net weight
- 21.77 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

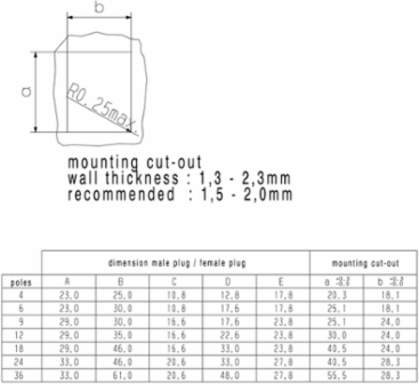

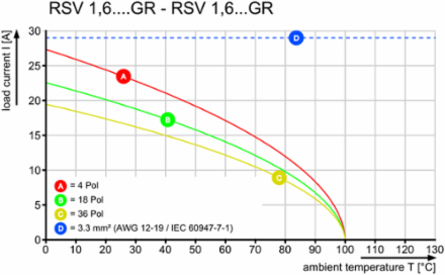

- Rated current, max. number of poles (Tu=20°C)
- 13 A
- Rated current, max. number of poles (Tu=40°C)
- 11.5 A
- Rated voltage for surge voltage class / pollution degree III/2
- 400 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)17 A
Rated current, min. number of poles (Tu=40°C)15 A
Rated voltage for surge voltage class / pollution degree II/2630 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 7032
- Comparative Tracking Index (CTI)
- ≥ 600
- Contact material
- Copper alloy
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
ColourPebble grey
Insulating material groupI
UL 94 flammability ratingV-0
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
UNSPSC30-21-18-10
System Parameters
- Product family
- OMNIMATE Signal - series RSV
- Wire connection method
- Crimp connection
- Pitch in inches (P)
- 0.197 inch
- Number of poles
- 36
- L1 in inches
- 1.575 inch
- Pin series quantity
- 4
- Touch-safe protection acc. to DIN VDE 0470
- IP 20
- Stripping length
- 4 mm
- Pulling force/pole, max.
- 2 N
Type of connectionField connection
Pitch in mm (P)5 mm
Conductor outlet direction180°
L1 in mm40 mm
Number of rows1
Touch-safe protection acc. to DIN VDE 57 106Safe from finger touch
Can be codedYes
Plugging force/pole, max.2 N
Packing
- Packaging
- Box
- VPE width
- 134 mm
VPE length38 mm
VPE height196 mm
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Spacing between rows: see hole layout Rated cross-section depends on crimp contact used. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Max. outer diameter of the cable (with insulation): 3.5 mm
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.13 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- Max. clamping range
- 3.31 mm²
Clamping range, max.3.31 mm²
Flexible, max. H05(07) V-K2.5 mm²
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group C / CSA)
- 600 V
- Wire cross-section, AWG, min.
- AWG 26
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)53975-13
Rated current (Use group C / CSA)13 A
Wire cross-section, AWG, max.AWG 12
