Weidmuller 1419100000 RSV1,6 S36 GR BX

MPN: 1419100000
PPN: WDM-1419100000

$10.35

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

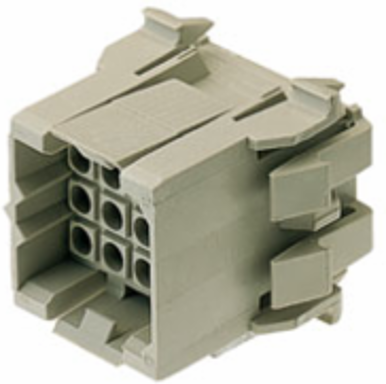

PCB plug-in connector, male plug, 5.00 mm, Number of poles: 36, 180°, Crimp connection, Clamping range, max. : 3.31 mm², Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (UR)	UR
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (UR)	E92202

Approvals

Approvals	CSA, EAC, UR
UL File Number Search	E92202

ROHS	Conform

Dimensions And Weights

Net weight	17.3 g

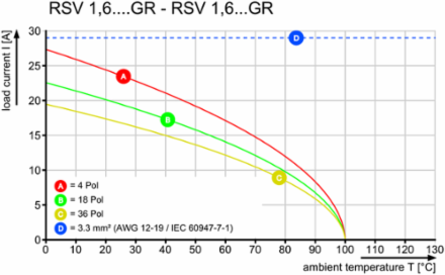

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, max. number of poles (Tu=20°C)	13 A
Rated current, max. number of poles (Tu=40°C)	11.5 A
Rated voltage for surge voltage class / pollution degree III/2	400 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV

Rated current, min. number of poles (Tu=20°C)	17 A
Rated current, min. number of poles (Tu=40°C)	15 A
Rated voltage for surge voltage class / pollution degree II/2	630 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV
Short-time withstand current resistance	3 x 1s with 120 A

Material Data

Insulating material	Wemid (PA)
Colour chart (similar)	RAL 7032
Comparative Tracking Index (CTI)	≥ 600
Contact material	Copper alloy
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Colour	Pebble grey
Insulating material group	I
UL 94 flammability rating	V-0
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Classifications

ETIM 6.0	EC002638
eClass 9.0	27-44-03-09
eClass 10.0	27-44-03-09

ETIM 7.0	EC002638
eClass 9.1	27-44-03-09
UNSPSC	30-21-18-10

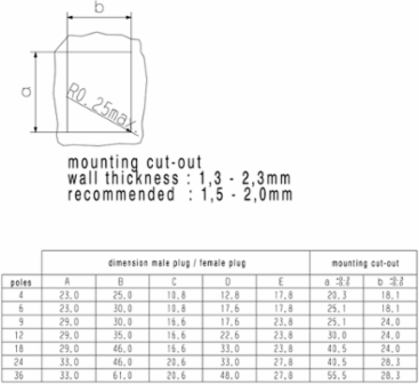

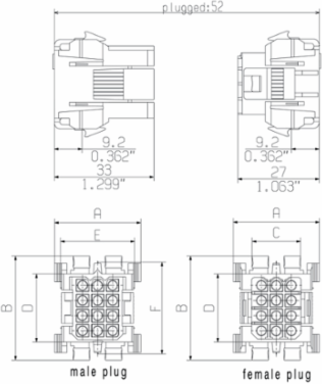

System Parameters

Product family	OMNIMATE Signal - series RSV
Wire connection method	Crimp connection
Pitch in inches (P)	0.197 inch
Number of poles	36
L1 in inches	1.575 inch
Pin series quantity	4
Touch-safe protection acc. to DIN VDE 0470	IP20 plugged
Plugging force/pole, max.	9 N

Type of connection	Field connection
Pitch in mm (P)	5 mm
Conductor outlet direction	180°
L1 in mm	40 mm
Number of rows	1
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch, plugged
Stripping length	4 mm
Pulling force/pole, max.	18 N

Packing

Packaging	Box
VPE width	104 mm

VPE length	68 mm
VPE height	132 mm

Notes

Additional colours on request Rated current related to rated cross-section & min. No. of poles. Spacing between rows: see hole layout Rated cross-section depends on crimp contact used. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Max. outer diameter of the cable (with insulation): 3.5 mm

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.	0.13 mm²
Flexible, min. H05(07) V-K	0.2 mm²
Max. clamping range	3.31 mm²

Clamping range, max.	3.31 mm²
Flexible, max. H05(07) V-K	2.5 mm²

Rated Data Acc. To Csa

Institute (CSA)	CSA
Rated voltage (Use group C / CSA)	600 V
Wire cross-section, AWG, min.	AWG 26
Reference to approval values	Specifications are maximum values, details - see approval certificate.
