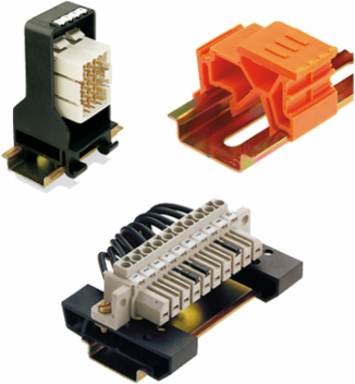

Weidmuller 1582930000 RSV1,6 RF9/35x7.5 SW
- MPN: 1582930000
- PPN: WDM-1582930000
CAD
$5.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

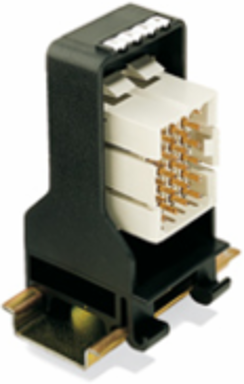

PCB plug-in connector, Accessories, Clip-in foot, black, Number of poles: 9
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 15.7 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
Material Data
- Insulating material
- PA
- Colour chart (similar)
- RAL 9011
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourblack
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002943
- eClass 9.0
- 27-44-04-92
- eClass 10.0
- 27-44-04-92
ETIM 7.0EC002943
eClass 9.127-44-04-92
UNSPSC30-21-18-01
Packing
- Packaging
- Box
- VPE width
- 138 mm
VPE length42 mm
VPE height195 mm
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
