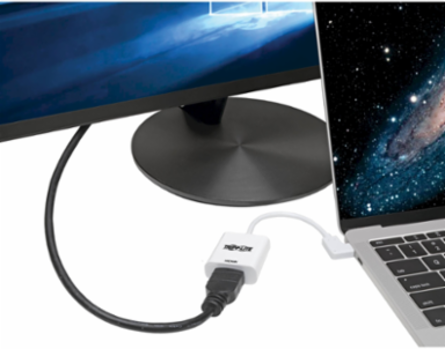

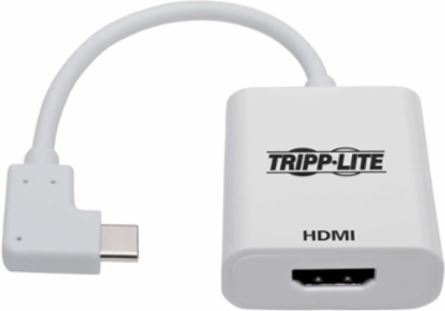

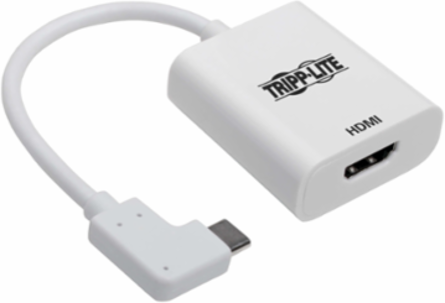

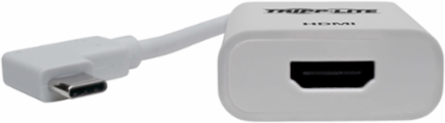

Tripp Lite U444-06N-HD4KRA USB-C to HDMI Adapter, 4K 60Hz, Right-Angle Connector, 6 Inch
- MPN: U444-06N-HD4KRA
- UPC: 037332214188
- PPN: TRP-U444-06N-HD4KRA
CAD
$19.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to HDMI Adapter, 4K 60Hz, Right-Angle Connector, 6 Inch
Features
- Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
- Delivers UHD picture quality at resolutions up to 4096 x 2160 (4K) @ 60 Hz
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Right-angle USB-C plug allows easier connection in confined or hard-to-reach spaces
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- Right-Angle USB-C to HDMI Adapter Connects to Your Laptop’s USB-C or Thunderbolt 3 Port
- Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- Transmits Crystal-Clear 4K Video and Digital Audio to a HDMI Monitor
- Reversible USB-C Connector Attaches in Either Direction
- Right-Angle USB-C Plug Makes Connecting in Tight Spaces Easier
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- 4096 x 2160 (4K x 2K) @ 60HZ
- HDCP Specification
- 2.2
- Audio Specification
- 7.1 Channel Surround Sound
- Max Supported Color Depth
- 36-bit Deep Color
HDMI Specification2.0
USB SpecificationUSB 3.1 Gen 1 (up to 5 Gbps)
Driver RequiredNo
TechnologyHDMI; USB; USB 3.1 (Gen 1)
Battery
- Battery Charging (1.2 Port)
- No
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 1
- Side B - Connector 1
- HDMI (FEMALE)
- Contact Plating
- Gold
Side A - Connector 1USB C (MALE) - RIGHT ANGLE
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and ABS
- Unit Dimensions (hwd / in.)
- 0.6 x 1.6 x 1.5
- Unit Weight (lbs.)
- 0.07
ColorWhite
Shipping Dimensions (hwd / in.)0.75 x 3.95 x 4.80
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- N/A
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.2
- Product Length (m.)
- 0.2
Product Length (in.)6
Product Length (ft.)0.5
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 2.9 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
- Power Provided to Connected Device(s)
- 5% to 90% RH, Non-Condensing
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)0.85
Storage Humidity Range5% ~ 90% RH
Overview
- UPC Code
- 037332214188
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
