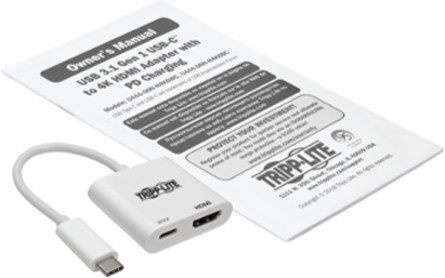

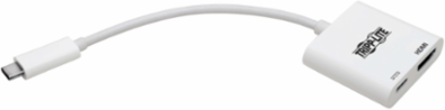

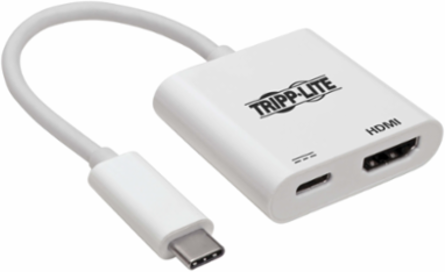

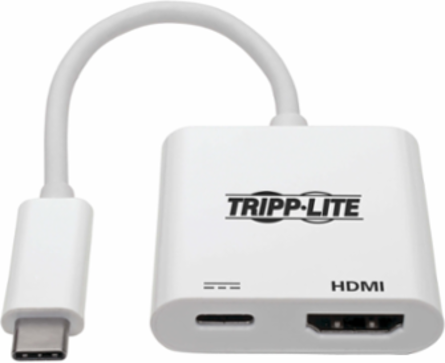

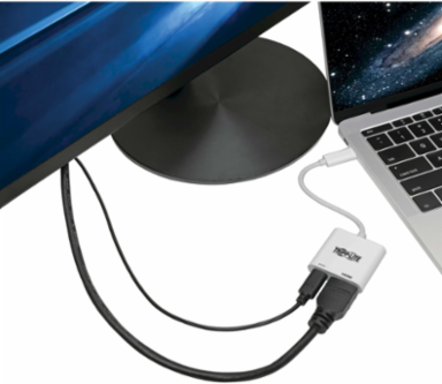

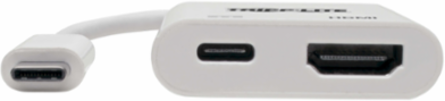

Tripp Lite U444-06N-H4K6WC USB-C to HDMI 4K Adapter, 60Hz, PD Charging, White
- MPN: U444-06N-H4K6WC
- UPC: 037332210739
- PPN: TRP-U444-06N-H4K6WC
CAD
$43.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to HDMI 4K Adapter, 60Hz, PD Charging, White
Features
- Transmits video signals from sources supporting USB-C DisplayPort Alt Mode
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Power Delivery port supports 3A (60W) power output for charging connected device
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- 3-year limited warranty
- USB 3.1 Type-C Adapter Connects an HDMI Monitor to Your USB-C or Thunderbolt 3 Device
- Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- Transmits Crystal-Clear 4K HDMI Video and Digital Audio
- PD Charging Port Charges Devices and Transfers Data at Fast USB 3.1 Gen 1 Speeds
- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- HDMI: 3840 X 2160 (4K X 2K) @ 60HZ
- HDCP Specification
- 2.2
- Audio Specification
- 7.1 Channel Surround Sound
- Technology
- HDMI; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); PD Charging
HDMI Specification2.0a
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Driver RequiredNo
USB Power Delivery (PD) Charging Specification2.0
Battery
- Battery Charging (1.2 Port)
- No
Certifications
- Certifications
- CE, FCC, EMI
Connections
- Ports
- 2
- Side B - Connector 1
- HDMI (FEMALE)
- Contact Plating
- Gold
Side A - Connector 1USB C (MALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC
- Shipping Weight (lbs.)
- 0.00
ColorWhite
Shipping Dimensions (hwd / in.)0.00 x 0.00 x 0.00
Unit Packaging TypeBox
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Output
- Charging Ports / Amps
- 3A
Charging Watts60
Environmental
- Operating Temperature Range
- 32 ~ 113F (0 ~ 45C)
- Operating Humidity Range
- 10% ~ 85% RH
- Power Provided to Connected Device(s)
- 20V / 3A (60W)
Storage Temperature Range14 ~ 158F (-10 ~ 70C)
Storage Humidity Range5% ~ 90% RH
Overview
- UPC Code
- 037332210739
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
