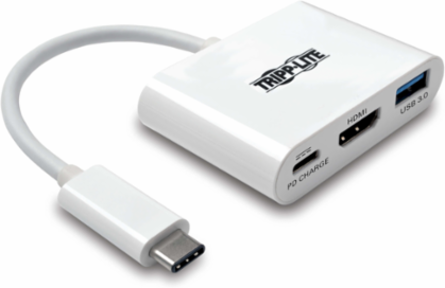

Tripp Lite U444-06N-HU-C USB-C to HDMI Adapter with USB-A Port, 1080p Video, PD Charging, White
- MPN: U444-06N-HU-C
- UPC: 037332193933
- PPN: TRP-U444-06N-HU-C
CAD
$122.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Adds HDMI, USB-A and USB-C PD ports to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- PD Charging port supports power input up to 20V 3A
- Reversible USB-C plug connects in either direction
- BC 1.2-compliant USB-A port provides up to 1.5A of fast charging power
- Plug-and-play operation with no software or drivers required
- 3-year limited warranty

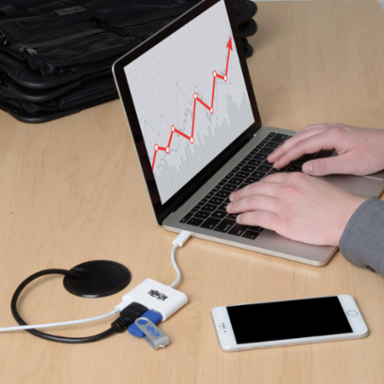

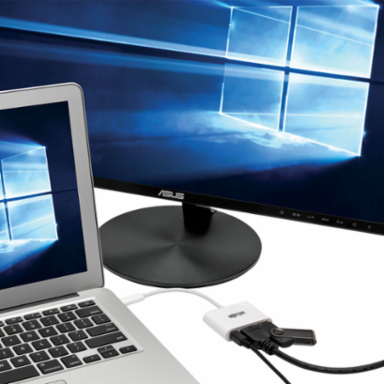

- Turn Your Device’s USB-C Port into a Multiport Workstation

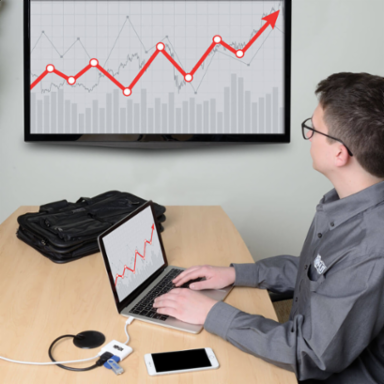

- Transmit Crystal-Clear 1080p Video and Digital Audio to HDMI Display
- Connect a USB Peripheral
- Charge a Connected Device

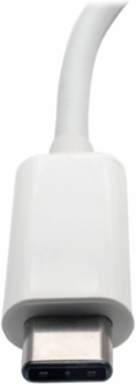

- Built-In Cable with Reversible USB-C Connector
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- HDMI: 1920 X 1080 (1080P) @ 60HZ
- HDCP Specification
- 1.3
- Driver Required
- No
- Technology
- USB 3.1 (Gen 1); HDMI; USB; PD Charging
HDMI Specification1.3
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
USB Power Delivery (PD) Charging SupportYes
USB Power Delivery (PD) Charging Specification2.0
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH

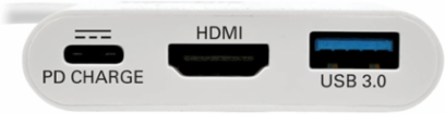

Connections
- Ports
- 3
- Side B - Connector 1
- HDMI (FEMALE)
- Side B - Connector 3
- USB Type-C (FEMALE)
Side A - Connector 1USB C (MALE)
Side B - Connector 2USB 3.0 A (FEMALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and ABS
- Shipping Weight (lbs.)
- 0.20
- Unit Packaging Type
- Box
ColorWhite
Shipping Dimensions (hwd / in.)0.80 x 3.90 x 4.70

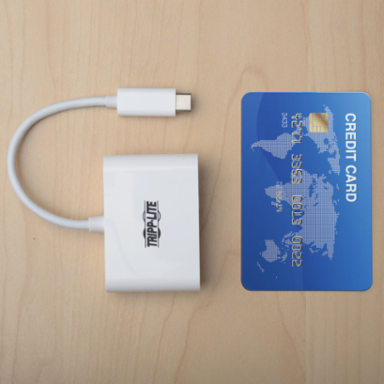

Unit Dimensions (hwd / in.)0.55 x 1.57 x 2.32
Unit Weight (lbs.)0.07
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Output
- Charging Ports / Amps
- 1.5A; 3A
Charging Watts60
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 4.4 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)1.3
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332193933
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
