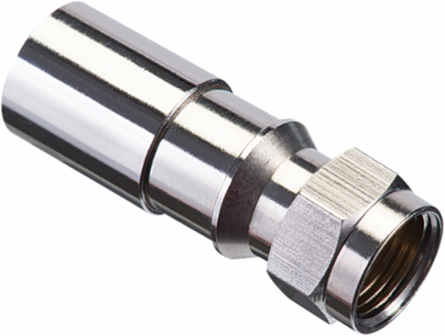

Ideal Industries 92-650 RTQ™ XR™ RG-6 F Compression Connector - 50 Pack, 7/16 Inch Nut, Weatherproof
- MPN: 92-650
- UPC: 783250926503
- PPN: IDL-92-650
CAD
$79.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The IDEAL RTQ™ XR™ series of F connectors offer a single connector solution to cover a range of coax types, including plenum rated versions. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.All RTQ™ connectors require an industry standard 1/4” x 1/4” cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal™ Pro or LinearX® compression tool.
Features
- Accepts RG-6/ RG-6 Quad/ RG-6 Plenum/ RG-6 Plenum Quad coax cables
- Accepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cables
- 1) Prepare RG-6 coax with a 1/4” x 1/4” strip, fold back the braiding. For RG-6 Quad, remove the outer foil layer and fold back both layers of braiding.
- 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
- 3) Place connector in IDEAL compression tool with standard F compression length setting and terminate.
- 4) During termination, the body will compress(get shorter) and permanently secure the coax inside of the connector.
- 5) Attach connector to device.
- Designed for use in cable and satellite TV installations
- WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
- Industry standard 21mm compressed length – works with non-IDEAL compression tools
- All brass, with nickel plated bodies
- Designed for optimal performance on 75Ω coaxial cables
- >40 pounds cable retention on all models
- 7/16” nut diameter with 3/8-32 thread
Documentation & Downloads
Specifications
Key Specifications
- Connector Model
- 6FRTQXR
- Dielectric diameter range
- .168” - .183”
- Recommended cable prep/stripping tool
- 45-605 PrepPRO™; 45-526
- Return loss
- >30dB up to 3 GHz
Center conductor rangeAll
Outer jacket diameter range.226” - .310”
Recommended compression tools30-793 OmniSeal™ PRO XL; 33-632 Linear X®3
Frequency range0 MHz to 3 GHz
