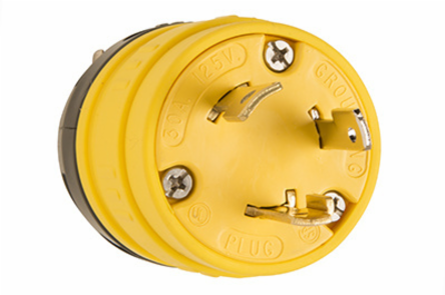

Pass & Seymour 2847 Rubber Dust-Tight Locking Plug, 30 Amp 125 Volt, Yellow, 2.963 Inch Length
- MPN: 2847
- UPC: 785007033793
- PPN: P-S-2847
CAD
$81.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Rubber Dust-Tight Locking Plug, 30 Amp 125 Volt, Yellow, 2.963 Inch Length
Features
- Thermoplastic elastomer (TPV) construction stands up to impacts,oils, chemicals, heat, and weather
- Two Screw cable clamp secures wire and provides superior strain relief
- Quick lead assembly screws aid in a fast installation
- Industrial strength, brass blades and contacts resist heat rise while providing excellent conductivity
- Keyed body and cover for easy assembly and alignment
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 2.963 in
- Special Features
- Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
- Country of Origin
- United States
- Amperage
- 30.0 A
- Features
- Locking
- Standard
- UL Listed
- Standard
- CSA Listed
- Warranty Type
- 1-Year
- Connector Style
- Locking
- Application Sector
- Industrial
- Environmental Conditions
- Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
- Color
- Yellow
- Flanged
- No
Width2.3 in
TypePlug
TypeLocking
Voltage125.0 V
NEMA RatingL5-30P
Number of Wires3.0
Number of Phases1.0
Indoor/OutdoorIndoor
Number of PolesDouble Pole
NEMA Configuration CodeL5-30P
Terminal Accommodation#14 AWG - #10 AWG
Product LinePass & Seymour
