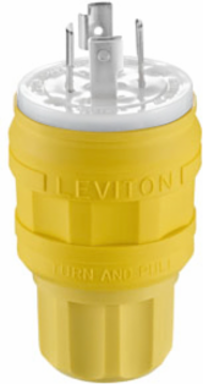

Leviton 28W77 Wetguard Locking Plug, 30 Amp, 600 Volt, NEMA L17-30P, 3-Phase, IP66/IP67
- MPN: 28W77
- UPC: 078477969045
- PPN: LEV-28W77
CAD
$125.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

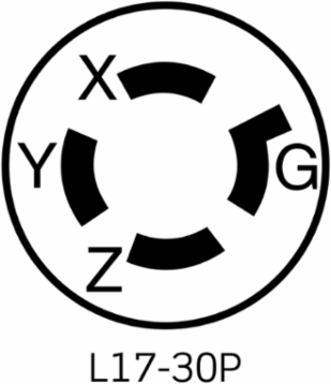

30 Amp, 600 Volt 3-Phase, NEMA L17-30P, 3P, 4W, Locking Plug,Industrial Grade, Grounding, Wetguard - YELLOW
Features
- Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Phase
- 3-Phase
- Wire
- 4
- Operating Temperature
- -40°C to 60°C
- Cord Grip Range
- 0.625-1.125 in
- IP Rating
- IP66, IP67, IP69K
- Grounding
- Grounding
- Device Type
- Locking Plug
- Flammability
- Rated V-2 per UL 94
- ANSI
- C-73
- RoHS Compliant
- False
- Body Interior
- Nylon
- Assembly Screws
- Stainless Steel, Non-Magnetic
- Blades/Contacts
- Electroless Nickel-coated Brass
- Compression Nut, Strain Relief
- Nylon
- Brand
- Wetguard
Voltage600 VAC
Pole3
Temperature RiseMax 30C after 250 cycles OL at 200% rated current
Current LimitingFull Rated Current
NEMAWD-6
Dielectric VoltageWithstands 2000V per UL498
EnvironmentWet
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
UL498
CSAC22.2 No. 42
MaterialSantoprene TPV, Nylon, Electroless Nickel-coated Brass, Stainless Steel
Terminal ScrewsElectroless Nickel-coated Brass
Body MaterialSantoprene TPV
Wire ModuleNylon
Terminal Accom.#12 to #8
Country of OriginMexico
