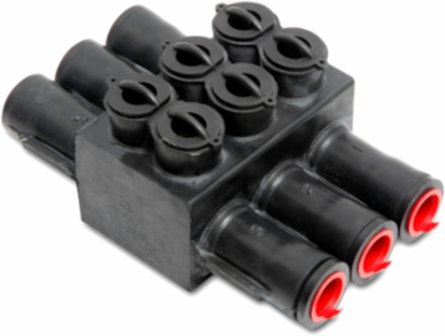

CMC DESS750-6I Rubber Insulated Secondary Connectors
CMC DESS750-6I Rubber Insulated Secondary Connectors
- MPN: DESS750-6I
- UPC: 192663111138
- PPN: HBL-U22700116I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$448.40/ EA
Description
Rubber Insulated Secondary Connectors, Dual rated connectors for Aluminum or Copper conductors
Features
- Clear plated for low-contact resistance.
- Meets the performance requirements of ANSI C119.1, ANSI C119.4 and Western Underground Committee Guide 2.5.
- Fully tested to ANSI 119.4 for Class ‘A’ connectors.
- Supplied with aluminum set-screws.
- Includes silicone CO-OX oxide inhibitor.
- Connector fabricated from 6061-T6 aluminum alloy for conductivity and strength.
- Each unit individually wrapped and labeled for ease of identification and cleanliness.
- For installation, CMC® recommends the use of a 9" insulated hex wrench (no tee handles).
- A torque wrnch should be used to ensure the proper torque achieved.
Specifications
Specifications
- Country of Origin
- United States
- Height
- 3.065 in
- Product Type
- Secondary Tap Connectors
- Width
- 8.15 in
- Class Code
- C02
- Harmonization Code
- 8536904000
- Sub Class Code
- C02C210
- Base Unit of Measure
- EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30192663111139
- Package Quantity
- 6 EA
Dimensions9.25 in x 8.15 in x 3.065 in
Length9.25 in
Voltage Rating600 V
Number Of Conductors6
Freight Class Code06120000
Image Actual Or RepresentativeA
MaterialAluminum Alloy, 6061-T6
Carton - SCC-14 Next Lower Level Sub Pack00192663111138
Package - GTIN - Package30192663111139
Package Weight6.592 lb.
Certifications
- CSA Approved
- No
- RUS Listed Reference
- Yes
UL RecognizedNo
