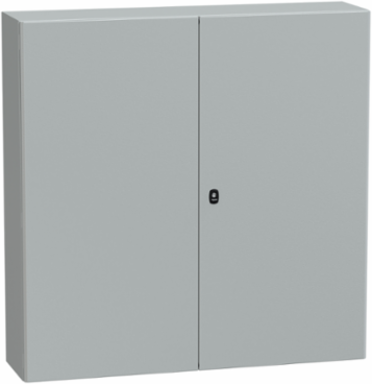

Schneider Electric NSYS3D121230DP Wall-Mounted Steel Enclosure 1200x1200x300mm, IP55, IK10, 86kg
Schneider Electric NSYS3D121230DP Wall-Mounted Steel Enclosure 1200x1200x300mm, IP55, IK10, 86kg
- MPN: NSYS3D121230DP
- PPN: SCH-NSYS3D121230DP
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1498.08/ EA
Description
Designed for durability and versatility, this wall-mounted steel enclosure from Schneider Electric is an excellent solution for various applications. With a robust construction featuring a solid double door and a mounting plate, it measures 1200x1200x300mm, providing ample space for your equipment while ensuring a high level of protection with an IP55 rating against dust and water ingress, as well as an IK10 rating for impact resistance. The enclosure's epoxy-polyester powder finish not only enhances its aesthetic appeal but also contributes to its longevity, making it suitable for both indoor and outdoor installations. Weighing 86 kg, this enclosure is equipped with a three-point lock for added security and features a reversible door for flexible access, ensuring that it meets the demands of any environment while adhering to industry standards such as IEC 62208 and UL certifications.
Features
- Steel wall-mounting enclosure suitable for a variety of applications.
- Grey-coloured, epoxy-polyester powder surface finish for long-lasting durability.
- Doors open up to 120°; reversible for ease of access.
- Three-point lock with a 3mm double-bar insert for added security.
- Easy maintenance with removable doors, cable gland plates, and mounting plate.
- Gutter-shaped front rail double sheet thickness and single piece body for performance.
- IK10 (IEC62262) and IP55 rating (IEC60529) for protection against impacts and water ingress.
- Front accessibility for convenient operation.
Specifications
Physical Attributes
- Color
- enclosure Gray RAL 7035)
- Enclosure Nominal Width
- 1200 mm
Enclosure Nominal Height1200 mm
Conformance Attributes
- Product Certifications
- UL, cUL, GL, BV, DNV
StandardsIEC 62208, UL, cUL
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 2 cable gland plate, 2 door with lock, 1 mounting plate
- Removable Parts
- door by hinges, cable gland plate by screws, mounting plate by fixing element
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 204 kg CO2 eq., 204.01696954262806
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 423 kg CO2 eq., 422.83290524854834
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Door Type
- Solid
- Lock Type
- 3 points lock, 3 mm double-bar
- Number Of Doors
- front face 2
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Surface Finish
- enclosure epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 816 kg CO2 eq.
- Medium Desc
- Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1200x1200x300mm, IP55, IK10
- Product Kit Identifier
- N
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- France, FR
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialenclosure steel, mounting plate galvanised steel
Carbon Footprint Of The Distribution Phase A4171.92894440092095, 172 kg CO2 eq.
Carbon Footprint Of The Installation Phase A517.0616760834784, 17 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Door Opening Sidereversible 120 °)
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionplain
Package Weight Lbs86.600 kg
Product Or Component Typecompact enclosure
ReturnabilityNo
Sustainable PackagingNo
Type Of Gland Platestandard
Stocking FlagY
Pep CodeENVPEP1001004EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Product NamePanelSeT S3D
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 815.8404952755757
- IP Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1001004EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- compact enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
