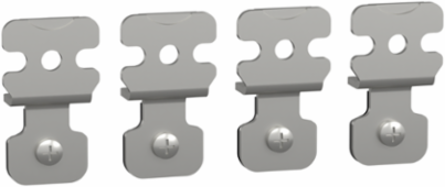

Schneider Electric NSYAEFPFSC Steel Wall Fixing Lugs for Spacial S3D Enclosure, 74mm x 42mm x 12mm, 250kg Load
- MPN: NSYAEFPFSC
- PPN: SCH-NSYAEFPFSC
CAD
$14.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial S3D, CRNG enclosure Wall fixing lugs. H: 74 x 42 x 12 mm. Wall fixing support. Mounting rear of enclosure. Horizontal or vertical position. Permanent permissible load: 250 kg. Zinc coated finish. set of 1.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France, United States
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing screws, 4 lug, 4 pre-mounted sealing gasket
- Fixing Mode
- screwed M8, screwed M6
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Location
- rear of enclosure
- Product Or Component Type
- wall fixing support
- Range
- PanelSeT
- Surface Finish
- passivated zinc coated
- Pep Code
- ENVPEP1001004EN
- Width Nominal
- real: 42 mm
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Permanent Permissible Load250 kg, 551 lb(US)
Local Publishable Date2026-04-18
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Materialsteel
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Sustainable PackagingNo
Height Nominalreal: 74 mm
Accessory / Separate Part Categoryfixing accessory
Package Weight(Lbs)304.000 g
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- wall fixing support
ETIM
- ETIM 8
- EC002625
ETIM 9EC002625
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
