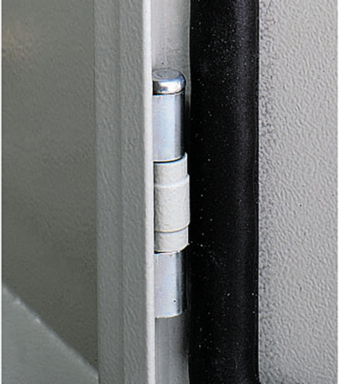

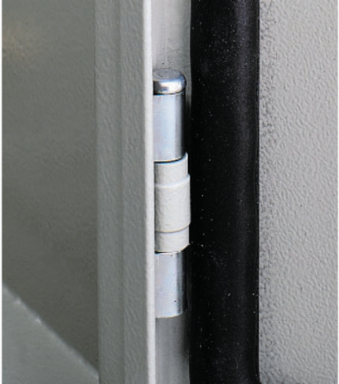

Schneider Electric NSYAEDH120S3D PanelSeT S3D Hinges, 120 Operating Angle, 50 kg/m2 Load Capacity, Set of 1
- MPN: NSYAEDH120S3D
- PPN: SCH-NSYAEDH120S3D
CAD
$4.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for versatility and durability, this door hinge is an essential component for the PanelSeT S3D enclosure by Schneider Electric. Crafted from treated sheet steel and aluminum, it ensures a robust performance with a maximum load capacity of 50 kg/m2, making it suitable for a variety of applications. With an operating angle of 120 degrees, this hinge allows for smooth and efficient access to your enclosure, while its compact design and lightweight nature at just 0.031 kg make it easy to install using screws directly onto the enclosure body. Whether you're upgrading existing hardware or assembling new installations, this hinge set, complete with all necessary fixings, is a reliable choice that comes with an 18-month warranty, ensuring peace of mind in your projects.
Features
- Designed with a wide 120-degree operating angle, this hinge ensures unhindered, wide-open access to the internal components and subpanels of your electrical enclosure. This maximizes working clearance, eliminating the risk of doors swinging shut or creating spatial bottlenecks during routine electrical maintenance, wiring updates, or systems testing.
- Built to manage heavy-duty industrial configurations, this component supports a maximum distributed door load of up to 50 kg/m2 when installed correctly. You can confidently mount heavy human-machine interfaces (HMIs), industrial pushbuttons, or detailed display panels onto the enclosure door without risking sag, misalignment, or structural fatigue over long-term operation.
- To minimize facility downtime, each individual kit is supplied complete with the necessary high-strength fixing elements and screws for a seamless replacement process. The simple screw-on mounting configuration interfaces directly with the pre-drilled enclosure body locations.
- The hinge body is fabricated from treated sheet steel to provide exceptional tensile strength, while the integrated internal pivot pin is made from high-grade aluminum for natural corrosion resistance. This deliberate combination of materials prevents mechanical binding, minimizes frictional wear, and ensures smooth, consistent operation even in challenging indoor automation and mechanical housing environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Complementary Attributes
- Maximum Load
- 50 kg/m²
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements1 x hinge body, 1 x pin
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- hinge body treated sheet steelpin aluminium
- Operating Angle
- 120 °
- Product Or Component Type
- hinge
- Range
- PanelSeT
- Sustainable Packaging
- No
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2026-07-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby screws - on enclosure body
Mounting Locationenclosure
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Pep CodeENVPEP1001004EN
Package Weight(Lbs)36.000 g
Take-backNo
Customs Code8302106060
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- hinge
ETIM
- ETIM 8
- EC001167
ETIM 9EC001167
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
