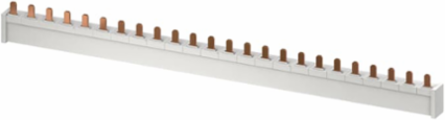

ABB S803-BB250 S803-BB250 Busbar
- MPN: S803-BB250
- UPC: 888614254602
- PPN: ABB-S803-BB250
CAD
$824.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The S803-BB250 is a 3-pole busbar with 24 terminal lugs. It can be used for rated current up to 250A.
Specifications
Installation
| Instructions and Manuals | 9AKK106930A3418 |
|---|
Dimensions
| Product Net Width | 60 mm |
|---|---|
| Product Net Depth / Length | 654 mm |
| Dimension Diagram | 2CCC413003C0201 |
| Product Net Height | 27 mm |
|---|---|
| Product Net Weight | 1604 g |
Technical
| Standards | IEC 60439-2 |
|---|---|
| Rated Operational Voltage | 400/690 V AC |
| Rated Current (In) | 250 A |
| Rated Frequency (f) | 50...60 Hz |
| Housing Material | Insulation group I |
| Model Number | Flat |
| Suitable For | S800SS800NS800CS800B |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Operational Current (Ie) | 250 A |
| Tightening Torque | 3.5 N·m |
| Recommended Screw Driver | Pozidriv 2 |
| Terminal Type | Screw Terminals |
Classifications
| ETIM 9 | EC001522 - Busbar |
|---|---|
| WEEE B2C / B2B | Business To Business |
| eClass | V11.0 : 27370303 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
|---|---|
| CN8 | 85389030 |
| Object Classification Code | F |
Environmental
| Ambient Air Temperature | Operation -25 ... +60 °CStorage -40 ... +70 °C |
|---|---|
| RoHS Status | Following EU Directive 2011/65/EU |
| Environmental Information | 2CCY413207D0203 |
| Degree of Protection | acc. to IEC 60529 IP20 |
|---|---|
| RoHS Information | 9AKK107680A3903 2CCC413003C0201 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
Ordering
| Minimum Order Quantity | 1 piece |
|---|---|
| Package Level 1 Gross Weight | 1700 g |
| E-Number (Sweden) | 2101650 |
| Package Level 1 Units | box 1 piece |
|---|---|
| E-Number (Finland) | 3212458 |
