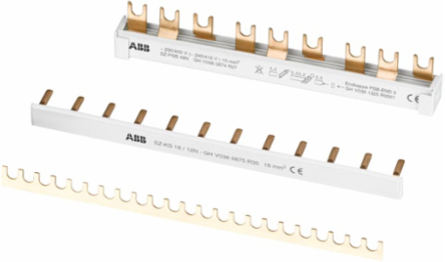

ABB SZ-PSB92N SZ-PSB92N Busbar

SZ-PSB92N Busbar
  • MPN: SZ-PSB92N
  • UPC: 772737017476
  • PPN: ABB-SZ-PSB92N
  • UNSPSC: 39121117

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$102.18/ EA

Description

PSB 92N BUS BAR

Specifications

Installation

Instructions and Manuals
No document needed

Dimensions

Product Net Width
15.8 mm
Product Net Depth / Length
1045 mm
Product Net Height31 mm
Product Net Weight0.65 kg

Technical

Rated Operational Voltage
690 VMaximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw)
25 kA
Pitch
44698.0
Number of Phases
2
Accessory Type
Busbar
Rated Cross-Section
16 mm²
Voltage Protection Level ( Up)4.5 kV
Rated Uninterrupted Current (Iu)80 A
Number of Poles48
Number of Mountable Devices24
Connection TypePin

Classifications

ETIM 9
EC000215 - Phase busbar
WEEE B2C / B2B
Business To Business
eClass
V11.0 : 27371306
Object Classification Code
W
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
CN88538 90 99
IDEA Granular Category Code (IGCC)4378 >> Phase busbar

Environmental

RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information9AKK108468A1264

Ordering

Minimum Order Quantity
1 piece
Package Level 1 Gross Weight
6.9 kg
Package Level 1 Unitscarton 10 piece
