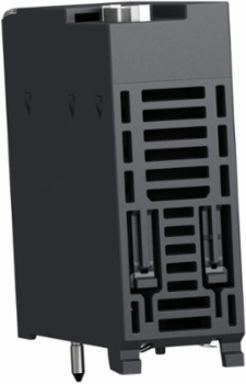

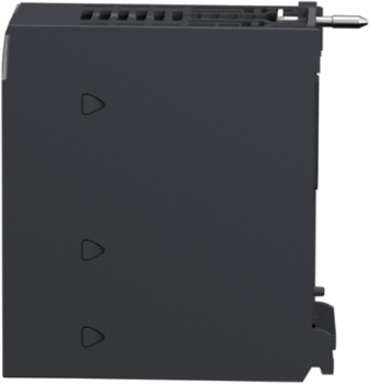

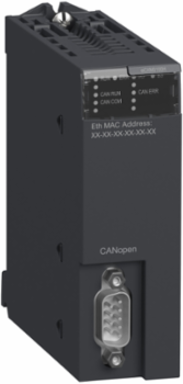

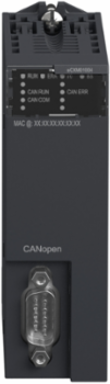

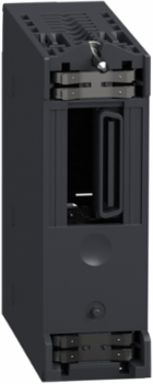

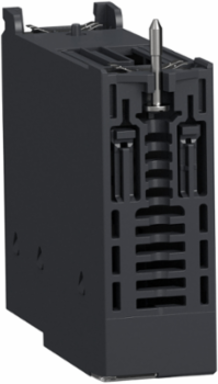

Schneider Electric BMECXM0100H Modicon X80 CANopen Communication Module, -25 to 70 C, 24 V DC
- MPN: BMECXM0100H
- PPN: SCH-BMECXM0100H
CAD
$2359.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for robust industrial applications, this hardened CANopen communication module from Schneider Electric is a vital component for any Modicon X80 system. With a rated supply voltage of 24 V DC and capable of operating in extreme temperatures ranging from -25 to 70 C, it ensures reliable performance in challenging environments. The module supports a variety of transmission rates and is compatible with the M580 PLC, making it an excellent choice for complex automation tasks. Its protective treatments and certifications, including CE and ATEX zone ratings, further enhance its durability and safety, ensuring it meets rigorous industry standards. Whether you're managing process data or integrating with existing systems, this communication module provides a dependable solution for your industrial networking needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France, Ireland, United States
Communications & Management Attributes
- Communication Service
- implicit exchange of process data - 20...70 °C
Complementary Attributes
- Integrated Connection Type
- Profibus DP - 1 SUB-D 9-pin female Profibus DP
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Environmental Characteristic
- gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
- Certificate Agency
- CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.31221875
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 13 kg CO2 eq., 13.21321875
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2402021EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current Consumption
- 70 mA
- Module Format
- standard
- Product Or Component Type
- CANopen communication module
- Range Of Product
- Modicon X80
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Transmission Support Medium
- Profibus DP twisted shielded pairs cable
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 189.216
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- [Us] Rated Supply Voltage
- 24 V DC internal
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]
- 8038.875
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 8038.875
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Transmission Rate9.6 kbit/s, 1200 m, 19.2 kbit/s, 1200 m, 93.75 kbit/s, 1200 m187.5 kbit/s, 1000 m500 kbit/s, 400 m1.5 Mbit/s, 200 m3 Mbit/s, 100 m, 12 Mbit/s, 100 m
Carbon Footprint Of The Distribution Phase [A4]0.0253685312, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0772286719, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]107 kg CO2 eq., 107.0254545455
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Mode Of TransmissionNRZ
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityNo
Structure Typeopen industrial fieldbus
Total Lifecycle Carbon Footprint121 kg CO2 eq.
Pep CodeENVPEP2402021EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %32
Number Of Server Device(S)63
Package Weight(Lbs)194.000 g
Warranty (In Months)18
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]2501.76
Customs Code8517620090
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2402021EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 10-95 %
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-45-85 °C, -45-85 °C
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint120.6534892486
Environmental DisclosureENVPEP2402021EN
Packaging Made With Recycled CardboardYes
Product CompatibilityM580 PLC
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2402021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- CANopen communication module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
