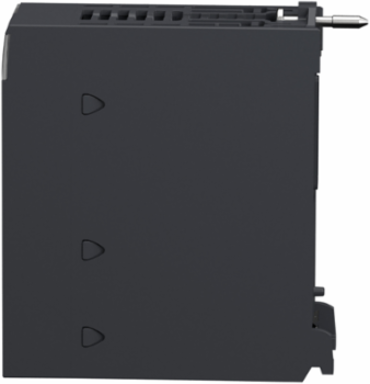

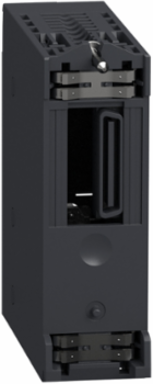

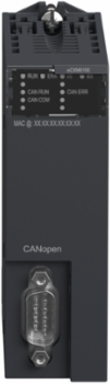

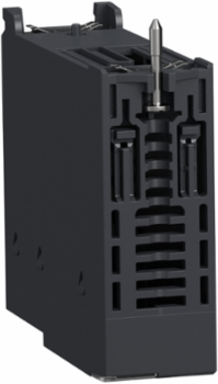

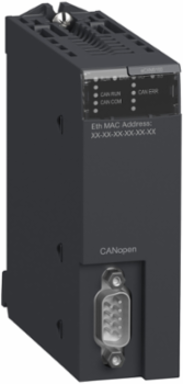

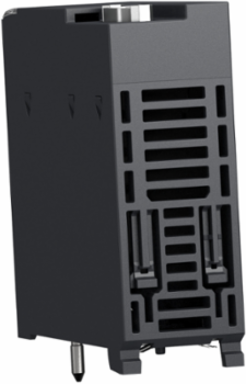

Schneider Electric BMECXM0100 CANopen Communication Module with 63 Slaves, DB9 Connector, 10/100Mbps

MPN: BMECXM0100
PPN: SCH-BMECXM0100
UNSPSC: 32151705

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$1982.46

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This CANopen communication module has 63 slaves, DB9 connector interface. It is a communication module which support CANopen twisted shielded pairs cable as transmission medium. It supports 10/100Mbps transmission rate, maximum cable distance between devices is 100m. This product is robust, high quality and based on the latest innovative technology. The communication service is CiA DSP 301 V4.02 with standard module format. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with M580 Programmable Logic Controllers (PLC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Features

Integrates CANopen communication for Modicon M580 systems
Supports up to 63 devices for scalable architecture
Compact module for X80 architecture
Reliable communication with field devices

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Canada

Weight	180 g

Communications & Management Attributes

Communication Service	CiA DSP 301 V4.02

Complementary Attributes

Us Rated Supply Voltage	24 V DC internal

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Transmission Rate	20 kbit/s, 2500 m CANopen with repeater50 kbit/s, 1000 m with repeater125 kbit/s, 500 m with repeater250 kbit/s, 250 m with repeater, 500 kbit/s, 100 m without repeater1 Mbit/s, 20 m without repeater
Carbon Footprint Of The End Of Life Phase C1 To C4	0.3 kg CO2 eq., 0.2896875
Carbon Footprint Of The Manufacturing Phase A1 To A3	12 kg CO2 eq., 12.2596875
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2402021EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Current Consumption	100 mA
Mode Of Transmission	NRZ
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Modicon X80
Software Version	v5.9.4
Sustainable Packaging	Yes
Transmission Support Medium	CANopen twisted shielded pairs cable
Data Source	extrapolated product
Customs Code	8517620090
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	32

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Carbon Footprint Of The Distribution Phase A4	0.0235378125, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0716554688, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	107 kg CO2 eq., 107.0254545455
Local Publishable Date	2026-02-24
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Method Of Access	CSMA/CA CANopen
Module Format	standard
Product Or Component Type	CANopen communication module
Returnability	No
Structure Type	open industrial fieldbus
Total Lifecycle Carbon Footprint	120 kg CO2 eq.
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Number Of Server Device S	63
Functional Unit Description	The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	189.216

Environment Attributes Main

Ambient Air Temperature For Storage	-45-85 °C, -45-85 °C
Operating Altitude	<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Reach Free Shvc	Yes
China Rohs Regulation	X
Carbon Footprint	119.6700228267
Circularity Profile	ENVEOLI2402021EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Relative Humidity	10-95 % without condensation
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP2402021EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	M580 PLC
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2402021EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
