Telemecanique Sensors XCSLF3737313 Safety switch, Telemecanique Safety switches XCS, metal XCSLF, 4NC+2 NO, slow break, 3 entries tapped 1/2" NPT 24 V
Telemecanique Sensors XCSLF3737313 Safety switch, Telemecanique Safety switches XCS, metal XCSLF, 4NC+2 NO, slow break, 3 entries tapped 1/2" NPT 24 V
- MPN: XCSLF3737313
- PPN: TES-XCSLF3737313
- UNSPSC: 39122213
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$779.47/ EA
Description

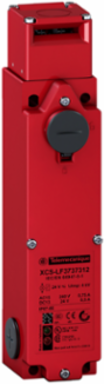

This XCSLF Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a robust red coated slim Zamak body with 3 x 1/2" NPT cable gland entries, allowing for flexible installation. It has 1 normally open and 2 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally open and 2 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 500 000. Its IP66 / IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Specifications
Environment
- Product Certifications
- UL || TÜV || CSA
- Standards
- EN 1088/ISO 14119 || EN/IEC 60947-5-1 || EN/IEC 62061 || EN/IEC 60204-1 || UL 508 || CSA C22.2 No 14 || EN/ISO 13849-1
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-60 °C
Shock Resistance10 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP66 EN/IEC 60529 and EN/IEC 60947-5-1 || IP67
Electrical Shock Protection Classclass I EN/IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110916EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110903EN
Complementary
- Minimum Switching Current
- 10 mA at 20 °C
- Maximum Load Current
- <= 15 A
- Minimum Actuation Speed
- 0.01 m/s
- Supply Voltage Type
- AC/DC
- Signalling Circuit Type
- AC/DC
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 300 VCSA C22.2 No 14 || 250 V 3)EN/IEC 60947-1
- Load Factor
- 1
- Minimum Actuator Force For Extraction
- 20 N
- Maximum Actuation Speed
- 0.5 m/s
- Safety Reliability Data
- B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear
- Depth
- 51 mm
- Maximum Actuator Forcible Withdrawal Rtc
- 3000 N
- Supply Frequency
- 50/60 Hz
Height205-205 mm
Short-Circuit Protection4 A cartridge fuse gG (gl) || 6 A fast blow
[Ithe] Conventional Enclosed Thermal Current4 A
Head Materialzamak
Net Weight1.1 kg
Maximum Operating Rate10 cyc/mn for maximum durability
Positive Openingwith NC contact
[Ie] Rated Operational Current0.55 A 24 V, DC-13, R300 EN/IEC 60947-5-1 || 0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1
Mechanical Durability1000000 cycles
Body Materialzamak
Width44 mm
Minimum Switching Voltage17 V
Resistance To Mechanical Impact9.6 J against the partition || 6.4 J without partition
Safety Levelcan reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508
Specifications
- [Us] Rated Supply Voltage
- 24 V - 15...10 %
- Cable Entry
- 3 entries tapped 1/2" NPT
- Locking Options Description
- with interlocking, locking by solenoid
- Product Or Component Type
- safety switch
- Component Name
- XCSLF
- Material
- metal
- Contacts Type And Composition
- 2 NC + 1 NO
- Local Signalling
- actuator withdrawn 1 LED orange) || actuator inserted and locked 1 LED green)
- Number Of Poles
- 3
Range Of ProductTelemecanique Safety switches XCS
Electrical Connectionspring terminal 1 x 1.5 mm² flexible or solid cable || spring terminal 2 x 0.5 mm² flexible cables with 13 mm bared ends
Solenoid Contacts Type And Composition2 NC + 1 NO slow-break, break before make)
Signalling Circuit Voltage24 V
Designslim
Head Typekey operated turret head
Contact Operationslow-break, break before make
Electromagnet Interlockinglocking on de-energisation and unlocking on energisation of solenoid
