Telemecanique Sensors XCSE7313 Safety switch, Telemecanique Safety switches XCS, metal XCSE, 2NC+1 NO, slow break, 2 entries tapped 1/2" NPT, 24 V
Telemecanique Sensors XCSE7313 Safety switch, Telemecanique Safety switches XCS, metal XCSE, 2NC+1 NO, slow break, 2 entries tapped 1/2" NPT, 24 V
- MPN: XCSE7313
- PPN: TES-XCSE7313
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$802.75/ EA
Description

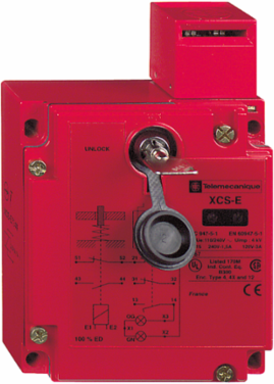

This XCSE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a robust red coated rectangular Zamak body with 2 x 1/2" NPT cable gland entries, allowing for flexible installation. It has 1 normally open and 2 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally open and 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Specifications
- Rated Operational Current
- 0.55 A at 125 V DC-13, 0.27 A at 250 V DC-13, 3 A at 120 V AC-15, 1.5 A at 240 V AC-15
- Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-5-1
- Short-Circuit Protection
- 10 A cartridge fuse gG (gl)
- Number of Poles
- 3
- Minimum Actuator Force for Extraction
- 20 N
- Mechanical Durability
- 1,000,000 cycles
- IP Degree of Protection
- IP67 EN/IEC 60529 and EN/IEC 60947-5-1
- Vibration Resistance
- 5 gn 10-500 Hz IEC 60068-2-6
- Dimensions
- Height 146 mm, Width 98 mm, Depth 44 mm
- Material
- Metal, Zamak
- Head Material
- Zamak
- Design
- Rectangular
- Contacts Type And Composition
- 2 NC + 1 NO slow-break main, 1 NC + 1 NO slow-break auxiliary
- Local Signalling
- 2 LEDs (green or orange) for guard open/closed and locked
- Signalling Circuit Consumption
- 7 mA
- Safety Level
- Category 4, PL e, SIL 3 (with appropriate monitoring and wiring, EN/ISO 13849-1, EN/IEC 61508)
- Product Certifications
- UL Listed, CSA Certified
- Ambient Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
Rated Insulation Voltage50 V EN/IEC 60947-1 signalling circuit
Conventional Enclosed Thermal Current6 A
Supply Voltage24 V AC/DC, 50/60 Hz, -10%/+20%
Actuation Speed0.01 to 0.5 m/s
Actuator Forcible Withdrawal2000 N
Electrical Shock Protection ClassClass I EN/IEC 61140
Shock Resistance10 gn 11 ms IEC 60068-2-27
Contact OperationSlow-break, break before make
Net Weight1.14 kg (2.51 lb)
Body MaterialZamak
Protective TreatmentTC
Head TypeKey operated turret head
Cable Entry2 entries tapped 1/2 in NPT
Signalling Circuit Voltage24/48 V AC/DC (20...52 V)
Power Consumption10 VA inrush, 10 VA sealed
StandardsEN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN 1088, ISO 12100, UL 508, CSA C22.2 No 14
Ambient Temperature for Operation-25 to 40 °C (-13 to 104 °F)
Electrical ConnectionTerminal 1 x 0.5...2 x 1.5 mm² with or without cable end
