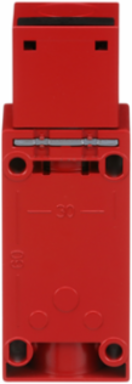

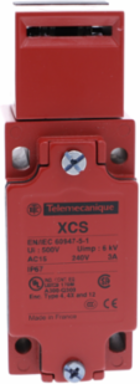

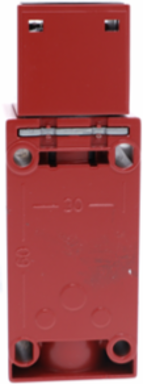

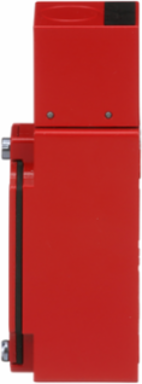

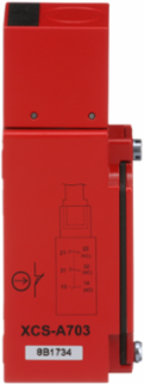

Telemecanique Sensors XCSA703 Safety switch, Telemecanique Safety switches XCS, metal XCSA, 2 NC + 1 NO, slow break, 1 entry tapped 1/2" NPT
- MPN: XCSA703
- PPN: TES-XCSA703
CAD
$221.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

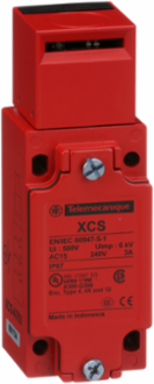

This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a Zamak body. This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated Zamak body with one cable gland entry, allowing an easier installation. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. It simply ensures a "door-open machine stop" control on your machine, with maximal reliability. It secures the machine and system operation with a key, only available to authorized operators.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 6 A 120 V AC-15, 3 A 240 V AC-15, 0.55 A 125 V DC-13, 0.27 A 250 V DC-13
- Short-Circuit Protection
- 10 A cartridge fuse gG (gl)
- Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-5-1
- Maximum Actuation Speed
- 0.5 m/s (1.64 ft/s)
- Maximum Operating Rate
- 10 cyc/mn
- Safety Level
- Category 4, Performance Level PL e, SIL 3 (with monitoring system and correct wiring) EN/ISO 13849-1, EN/IEC 61508
- Number of Poles
- 3
- Net Weight
- 0.44 kg (0.97 lb)
- Electrical Connection
- Terminal 1 x 0.5...2 x 1.5 mm², with or without cable end
- Material
- Metal, Zamak
- Head Material
- Zamak
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Vibration Resistance
- 5 gn (10–500 Hz) IEC 60068-2-6
- Electrical Shock Protection Class
- Class I EN/IEC 61140
Conventional Enclosed Thermal Current10 A
Rated Insulation Voltage300 V UL 508, 500 V EN/IEC 60947-1, 300 V CSA C22.2 No 14
Minimum Actuation Speed0.01 m/s (0.03 ft/s)
Minimum Actuator Force for Extraction20 N
Mechanical Durability1,000,000 cycles
Safety Reliability DataB10d = 5,000,000 cycles
Dimensions (D x H x W)44 mm x 114 mm x 40 mm (1.73 in x 4.49 in x 1.57 in)
Cable Entry1 entry tapped 1/2 in NPT
Head TypeKey operated turret head
Body MaterialZamak
IP Degree of ProtectionIP67 EN/IEC 60529 and EN/IEC 60947-5-1
Ambient Air Temperature for Storage-40 to 70 °C (-40 to 158 °F)
Shock Resistance10 gn, 11 ms IEC 60068-2-27
ComplianceUL, CSA, EN/ISO 13849-1, EN/IEC 61508, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, CSA C22.2 No 14, EN 1088/ISO 14119
