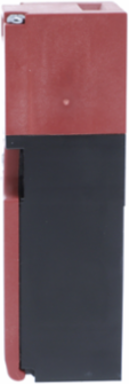

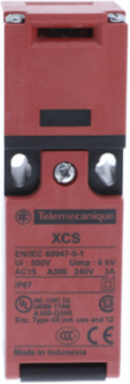

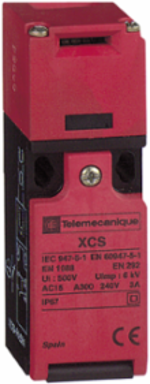

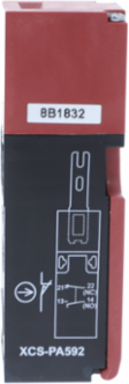

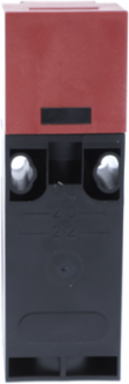

Telemecanique Sensors XCSPA591 Safety switch XCSPA, plastic, 1NC+1NO, slow break, 1 entry tapped Pg 11, Slow-break, break before make
- MPN: XCSPA591
- PPN: TES-XCSPA591
CAD
$122.48
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Safety switch XCSPA, plastic, 1NC+1NO, slow break, 1 entry tapped Pg 11, Slow-break, break before make
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Insulation | Double insulated |
|---|---|
| Operating rate | 10 cyc/mn for maximum durability |
| Safety reliability data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Head material | PA (polyamide) |
| Positive opening | With NC contact |
|---|---|
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Body material | PA (polyamide) |
Main
| Range of product | Telemecanique Safety switches XCS |
|---|---|
| Design | Compact |
| Head type | Key operated turret head |
| Contact operation | Slow-break, break before make |
| Electrical connection | Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Product or component type | Safety switch |
|---|---|
| Material | Plastic |
| Contacts type and composition | 1 NC + 1 NO |
| Cable entry | 1 entry tapped for Pg 11 |
| Locking options description | Without locking of actuator |
Environment
| Standards | CSA C22.2 No 14 EN 1088/ISO 14119 IEC 60204-1 IEC 60947-5-1 ISO 12100 UL 508 |
|---|---|
| Protective treatment | TC |
| Shock resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Product certifications | CSA UL |
|---|---|
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
