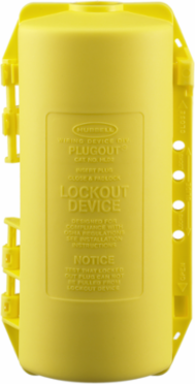

Hubbell Wiring Device-Kellems HLD2 PLUGOUT Lockout Device 12.5 Inch x 6.31 Inch x 5 Inch Yellow
- MPN: HLD2
- UPC: 783585001869
- PPN: HBL-HLD2
- UNSPSC: 39121906
CAD
$133.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Twist-Lock® Devices, Accessories, PLUGOUT® Lockout device for 20 and 30A 3 wire angle plugs and watertight Safety-Shroud® Twist-Lock® plugs, Yellow
Features
- PLUGOUT Lockout Device
- Lockout Device
- SIZE 2.
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Safety Product Guide
- Dimensions
- 12.5 in x 6.31 in x 5.00 in
- Standards - RoHS Compliance Status
- CM
- Color
- Yellow
- Legend
- Instructions Molded Into Product
- Lock Type
- Accepts up to 4 Padlocks (not supplied)
- Plug Type
- All Standard Plugs and Connectors
- Special Features
- Standard Product
- Weight
- 1.3 lb.
- Operating Temperature
- Maximum continuous 60°C and minimum continuous -29 °C
- Class Code
- A32
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A32A320
- Plug Dimensions
- Min: 1.90" (48.3), Max: 4.50" (69.8) in
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585001868
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginUnited States
PerformanceEnvironmental - Operating Temperature - Maximum continuous 140°F (60°C);minimum continuous -20°F (-29°C);Amperage - 15A;Enviornmental - Optional storage position - Stores on cable when not in use;Mechanical - Product Identification - Permanently molded into housing
ApplicationLarge Size
Height5.00 in
Length12.5 in
Plug SizeMin: 1.90" (48.3), Max: 4.50" (69.8) in
Size12.5 in x 6.31 in x 5.00 in
Width6.31 in
Display SizeLarge Size
StyleFor 30, 50 and 60A Devices
Description - InvoiceLOCKOUT DEVICE, SIZE 2
Harmonization Code3926909999
MSDS FlagNo
MaterialPolypropylene
SeriesAccessory
BOX SIZE8.200x26.200x13.200 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585001869
Case Weight7.200 lb.
Lowest Level UOMEach
Pallet Height41.000 in
Pallet Weight180.000 lb.
NAICS Code3261992191
