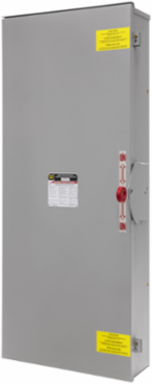

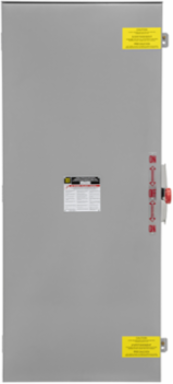

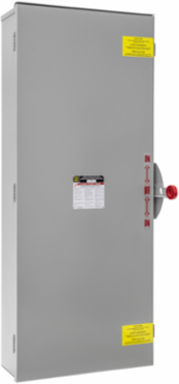

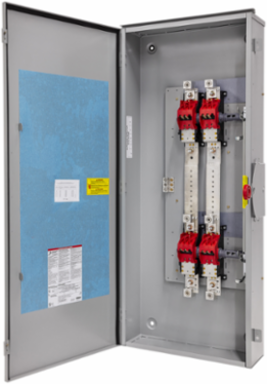

Square D DTU225R Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R

Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/e016baccfe21e99a77cfc503064e03e29c3da162-medium.png

Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/8c7a6c35cf6c5b932ab84ab5b67151ba78d05e34-medium.png

Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/c01a4781de6d21e915d5c707e417159d1ef5f8dd-medium.png

Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R

Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R

Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R

Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R

Square D DTU225R Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R

MPN: DTU225R
UPC: 785901331391
PPN: SCH-DTU225R

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$4846.72/ EA

Loading add to cart quantity...

Description

Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R

Specifications

Specifications

Series Name: general duty

Nema Degree Of Protection: NEMA 3R

Product Or Component Type: Double Throw Safety Switch

Number Of Poles: 2

Disconnector Device Typenon-fusible disconnect switch

[In] Rated Current400 A

Device Compositionnone

[Ue] Rated Operational Voltage240 V AC || 250 V DC

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1307076EN

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant

Reach Free Of SvhcYes

Complementary

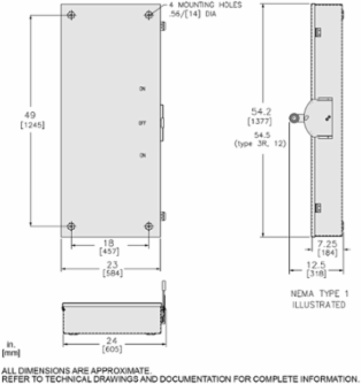

Height: 54.50 in

Fuse Type: H or K

Width: 24 in

Short-Circuit Current: 10 kA H or K

Device MountingT-bar grid

Awg GaugeAWG 1/0...750 kcmil aluminum/copper

Depth7.25 in

Net Weight59 kg

Environment

Product Certifications: UL listed
