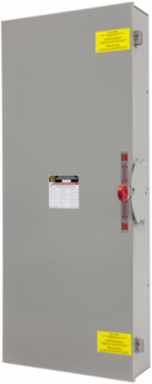

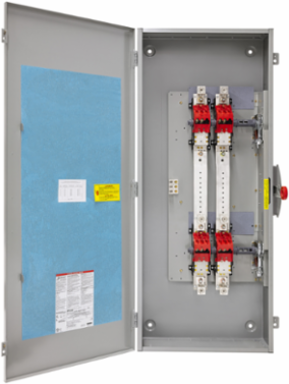

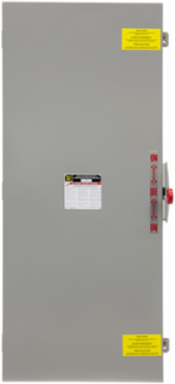

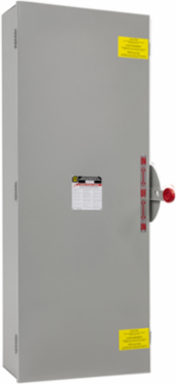

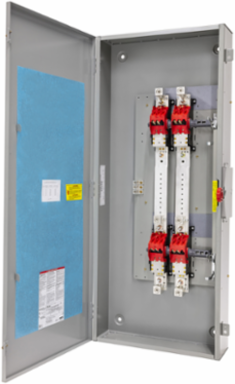

Square D DTU365DS Double Throw Safety Switch 400A 54.50 Inch Height NEMA 4 304 Steel
- MPN: DTU365DS
- PPN: SCH-DTU365DS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This double throw safety switch by Schneider Electric is engineered for robust power distribution and seamless operation in demanding environments. Constructed from durable 304 steel, it offers reliable functionality while maintaining a NEMA 4 rating to ensure protection against dust and water ingress. With a substantial 400A capacity and a height of 54.50 inches, it is designed to meet the diverse needs of today's electrical systems, providing an essential safeguard for both residential and industrial applications. Its reliable design stands out in the category of disconnects and safety switches, ensuring safety and dependability in critical operations.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 400 A
- Short-Circuit Current
- 10 kA H or K, 100 kA R, J or T
- Fuse Type
- H or K, R, J or T
- Motor Power
- 125 Hp at 240 V AC, 250 Hp at 480 V AC, 350 Hp at 600 V AC, 50 Hp at 250 V DC
- Height
- 54.50 in
- Mounting Type
- Surface
- Material
- 304 Stainless Steel
- Enclosure Rating
- NEMA 4/4X/5
- RoHS Compliance
- RoHS Compliant
- Country of Origin
- US
Voltage600 V AC, 250 V DC
Number of Poles3
Tightening Torque550 lbf.in, 62.14 lbf.in
Depth7.25 in
Width24 in
Net Weight75 kg (165.35 lb)
Disconnector Device TypeNon-fusible disconnect switch
Product CertificationsUL Listed
REACH ComplianceREACH Compliant
Series NameGeneral Duty
