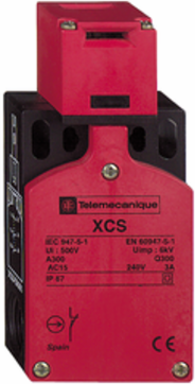

Telemecanique Sensors XCSTA892 Safety switch, Telemecanique Safety switches XCS, plastic XCSTA, 3 NC, slow break, 2 entries tapped M16
- MPN: XCSTA892
- PPN: TES-XCSTA892
- UNSPSC: 39122213
CAD
$153.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XCSTA Key Operated Safety Switch for guard doors has an adjustable turret head and a robust red coated polyamide body with 2 x M16 cable gland entries, allowing for flexible installation. It has 3 normally closed simultaneous (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Electrical Connection
- terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
- Product Or Component Type
- safety switch
- Design
- compact
- Head Type
- key operated turret head
- Contact Operation
- slow-break, simultaneous
- Number Of Poles
- 3
Cable Entry2 entries tapped M16 x 1.5
Locking Options Descriptionwithout locking of actuator
Component NameXCSTA
Materialplastic
Contacts Type And Composition3 NC
Cable Outer Diameter7-10 mm
Complementary
- Height
- 115-115 mm
- Minimum Actuation Speed
- 0.01 m/s
- Net Weight
- 0.16 kg
- Maximum Operating Rate
- 10 cyc/mn for maximum durability
- Positive Opening Minimum Force
- 15 N
- Positive Opening
- with NC contact
- Mechanical Durability
- 1000000 cycles
- Body Material
- PA (polyamide)
- Width
- 52 mm
- Depth
- 30 mm
Short-Circuit Protection10 A cartridge fuse gG (gl)
Head MaterialPA (polyamide)
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-5-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
Insulationdouble insulated
[Ie] Rated Operational Current6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
Maximum Actuation Speed0.5 m/s
Safety Reliability DataB10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Actuator Forcible Withdrawal Rtc10 N
Safety Levelcan reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Environment
- Product Certifications
- UL || CSA
- Standards
- EN/IEC 60204-1 || EN/ISO 12100 || UL 508 || EN 1088/ISO 14119 || CSA C22.2 No 14 || EN/IEC 60947-5-1
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance10 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Electrical Shock Protection Classclass II EN/IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110606EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110603EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
