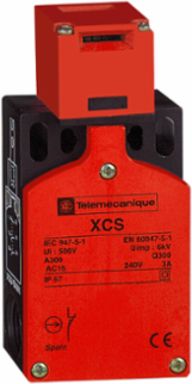

Telemecanique Sensors XCSTA592 Safety switch, Telemecanique Safety switches XCS, plastic XCSTA, 1 NC + 2 NO, slow break, 2 entries tapped M16
- MPN: XCSTA592
- PPN: TES-XCSTA592
- UNSPSC: 39122213
CAD
$135.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCSTA Key Operated Safety Switch for guard doors has an adjustable turret head and a robust red coated polyamide body with 2 x M16 cable gland entries, allowing for flexible installation. It has 2 normally open and 1 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Electrical Connection | terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Product Or Component Type | safety switch |
| Design | compact |
| Head Type | key operated turret head |
| Contact Operation | slow-break, break before make |
| Number Of Poles | 3 |
| Cable Entry | 2 entries tapped M16 x 1.5 |
|---|---|
| Locking Options Description | without locking of actuator |
| Component Name | XCSTA |
| Material | plastic |
| Contacts Type And Composition | 1 NC + 2 NO |
| Cable Outer Diameter | 7-10 mm |
Complementary
| Height | 115-115 mm |
|---|---|
| Minimum Actuation Speed | 0.01 m/s |
| Net Weight | 0.16 kg |
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
| Positive Opening Minimum Force | 15 N |
| Positive Opening | with NC contact |
| Mechanical Durability | 1000000 cycles |
| Body Material | PA (polyamide) |
| Width | 52 mm |
| Depth | 30 mm |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
|---|---|
| Head Material | PA (polyamide) |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Insulation | double insulated |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 |
| Maximum Actuation Speed | 0.5 m/s |
| Safety Reliability Data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Actuator Forcible Withdrawal Rtc | 10 N |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
Environment
| Product Certifications | CSA || UL |
|---|---|
| Standards | EN 1088/ISO 14119 || EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/ISO 12100 || UL 508 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Shock Resistance | 10 gn 11 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 EN/IEC 60529 and EN/IEC 60947-5-1 |
| Electrical Shock Protection Class | class II EN/IEC 61140 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110606EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI110603EN |
