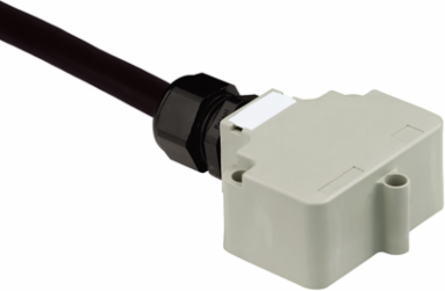

Weidmuller 1791450400 SAI-4/6/8-MHF 4P PUR 4M
- MPN: 1791450400
- PPN: WDM-1791450400
CAD
$211.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sensor-actuator passive distributor, Hood version, 4 m, No
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Technical Data Cable
- Cable length
- 4 m
- Number of poles
- 4
Suitable for cable carriersYes
O.D.8.2 mm
Dimensions And Weights
- Height
- 32.5 mm
- Depth
- 59.2 mm
- Net weight
- 493 g
Height (inches)1.28 inch
Depth (inches)2.331 inch
Electrical Data
- Rated voltage, min.
- 10 V
- Max. current-carrying capacity per slot
- 4 A
Rated voltage, max.30 V
Total current10 A
Connection Data
- Cable glands
- M 20
Distributor outletHood version
General Technical Data
- Protection degree
- IP68
- Pollution severity
- 3
Number of poles4
LEDNo
Material Data
- Housing main material
- Pocan
- Housing colour
- grey, RAL 7032
- Contact surface
- Gold-plated
Material of distributorPlastic
Contact materialCuZn
Contact carrier materialPBT (UL 94 V0)
Classifications
- ETIM 6.0
- EC002585
- eClass 9.0
- 27-44-01-08
- eClass 10.0
- 27-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 80 °C
- Operating temperature
- -20 - 80°C
Operating temperature, min.-20 °C
